What Is PAN-Based Carbon Felt and Why It Matters
Polyacrylonitrile (PAN)-based carbon felt is a lightweight, conductive, and high-temperature resistant material widely used in advanced energy and thermal insulation technologies. From fuel cell gas diffusion layers (GDL) to thermal linings in vacuum furnaces, PAN-based carbon felt is revolutionizing modern industry with its performance and versatility.
How PAN-Based Carbon Felt Is Made
Standard Manufacturing Process
- Pre-Oxidation (180–240°C): Converts PAN fibers into stable PANOF felt.
- Carbonization (1000–1300°C): Removes non-carbon elements.
- Graphitization (1600–2400°C): Enhances conductivity and thermal performance.
Advanced Modification Techniques
- Boric acid treatment: Enhances graphitization and reduces resistivity.
- Hydrophobic coating (e.g. PTFE): Forms water-repellent surfaces (contact angle 115°–145°).
- High surface area activation: Increases porosity and electrochemical activity.
Key Properties of PAN-Based Carbon Felt
Physical & Thermal Properties
- Low thermal conductivity (0.05–0.17 W/m·K at 25°C) offers excellent insulation.
- High porosity (75%–90%) promotes airflow and thermal buffering.
- Lightweight (0.09–0.17 g/cm³), easy to handle and process.
Electrical Conductivity
- Surface resistivity: 6–61 mΩ·cm.
- Improved through graphitization and boron doping.
Chemical Resistance
- Carbon content ≥99.5% (high-purity grades).
- Stable in vacuum or inert gas environments.
- Resistant to acid and alkaline corrosion.
Specifications of PAN-based carbon felt
| Parameter Category | Technical Specifications |
| Areal Weight | 400 g/m² |
| Bulk Density | 0.12–0.14 g/cm³ |
| Thickness | 3–5 mm |
| Carbon Content | ≥99.5% |
| Ash Content | ≤0.3% |
| Thermal Conductivity (25℃) | 0.09–0.17 W/(m·K) |
| Tensile Strength | Longitudinal: 0.10–0.12 MPa Transverse: 0.08–0.10 MPa |
| Resistivity | 4–6 Ω·mm |
| Porosity | 75–85% |
| Compressive Stress (10% strain) | 8–12 N/cm² |
| Elongation at Break | Longitudinal: 3–5% Transverse: 15–18% |
| Max Operating Temperature | Inert atmosphere: ≥1800℃ Air: ≤400℃ |
| Specific Surface Area | 1.5–2.0 m²/g |
| Moisture Absorption | ≤2% |
Applications of PAN-Based Carbon Felt
Fuel Cells
PAN-based carbon felt is widely used in PEM fuel cell gas diffusion layers (GDLs), offering high porosity, conductivity, and hydrophobicity to enhance gas transport and water management.
Vanadium Redox Flow Batteries (VRFB)
Surface-treated carbon felt serves as efficient electrodes with improved electrochemical activity, ideal for large-scale energy storage systems.
Vacuum Furnace Insulation
Used as a thermal insulator in high-temperature environments, it helps reduce energy loss and improve efficiency — commonly used in monocrystalline silicon furnaces.
Carbon/Carbon Composites
Acts as a structural reinforcement in aerospace components such as nose cones and nozzle throats due to its excellent ablation resistance.

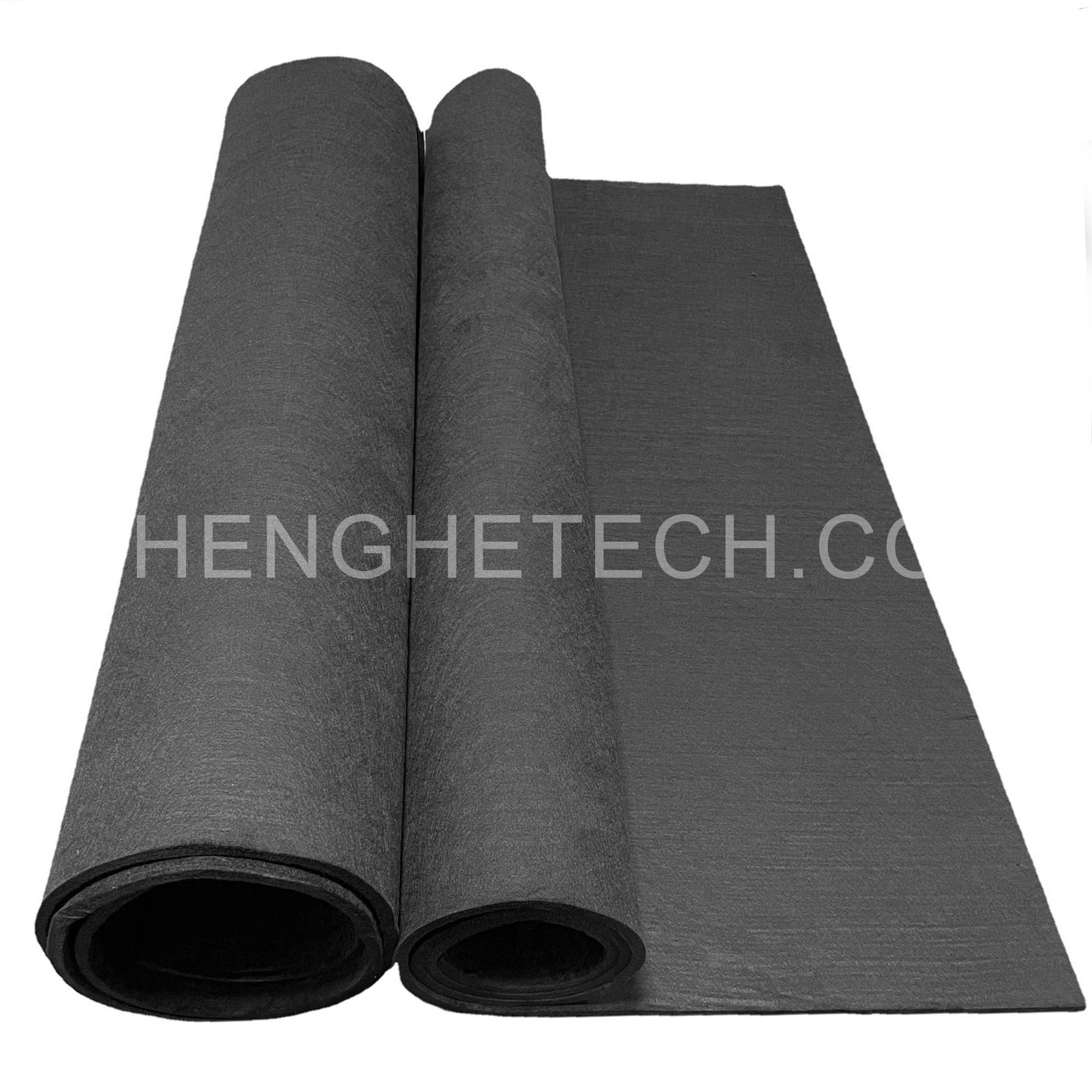

Catalysts & Gas Adsorption
Activated carbon felt is used in gas purification and as a catalyst support for environmental and chemical applications.
Future Trends in PAN-Based Carbon Felt
- Boron-doped felts with ultra-low resistivity for next-gen fuel cells.
- Nano-scale carbon fiber felts for enhanced adsorption and energy density.
- Functional coatings for improved catalytic and electrochemical performance.
Conclusion
PAN-based carbon felt is an indispensable material for industries focused on clean energy, high-temperature insulation, and advanced composites. With continuous innovations, its role in sustainable and high-performance applications is growing rapidly.
