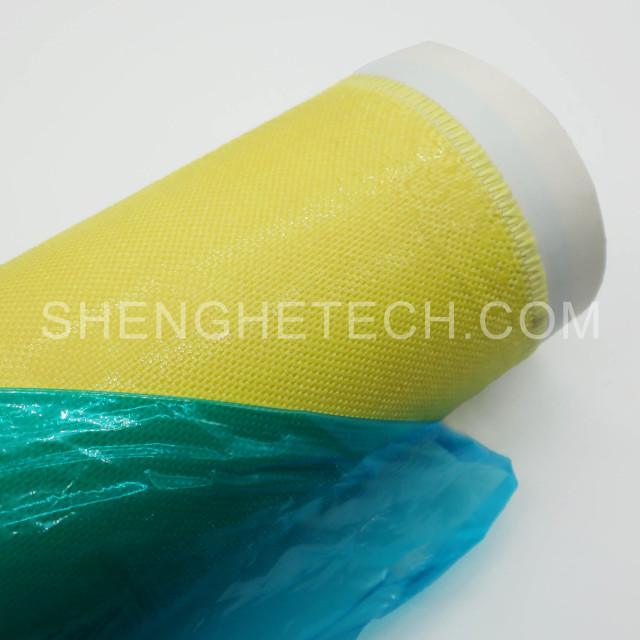

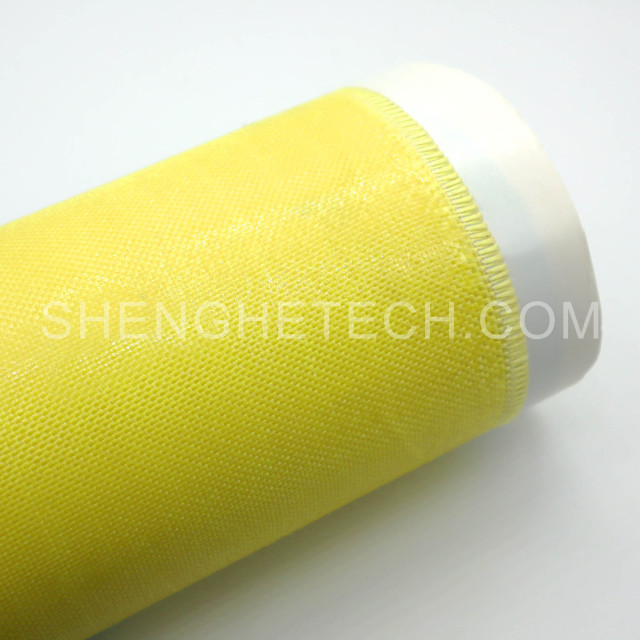

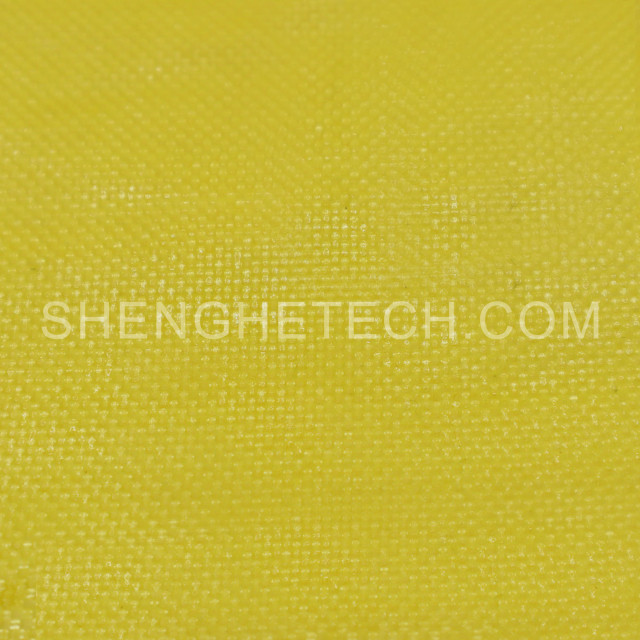

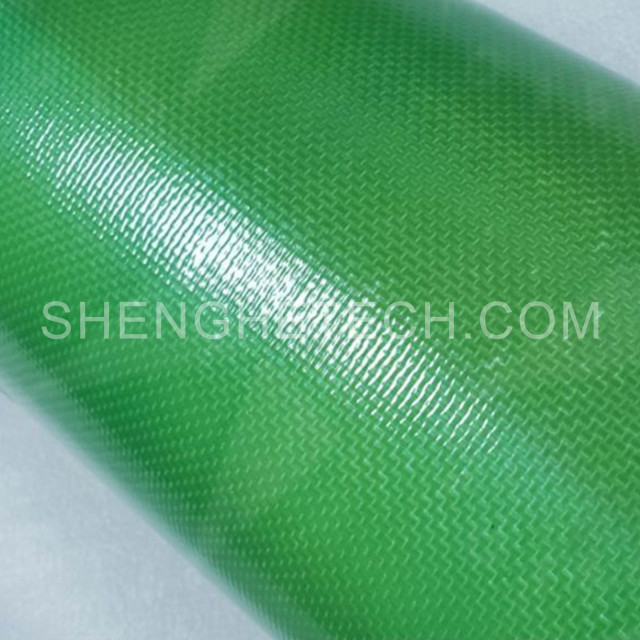

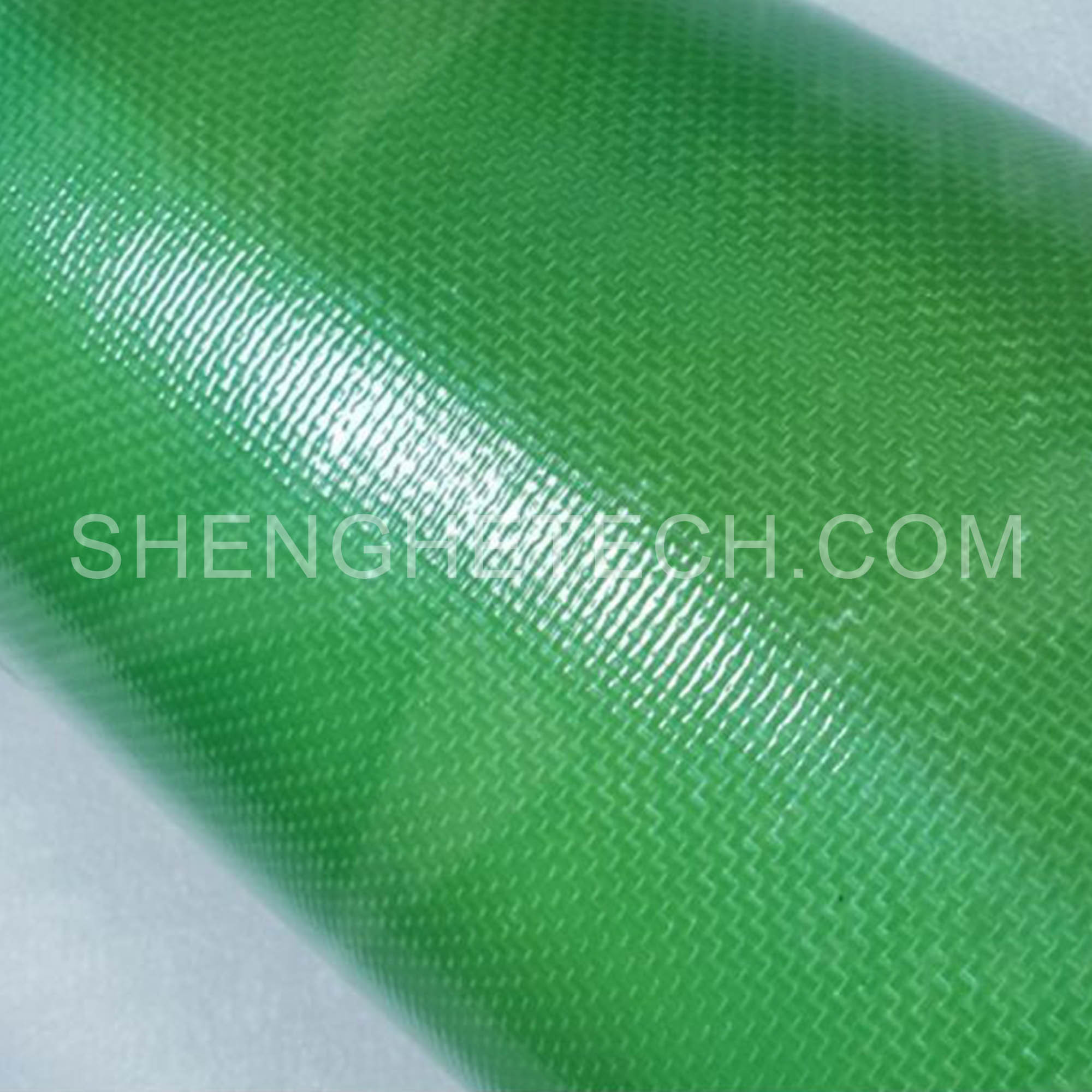

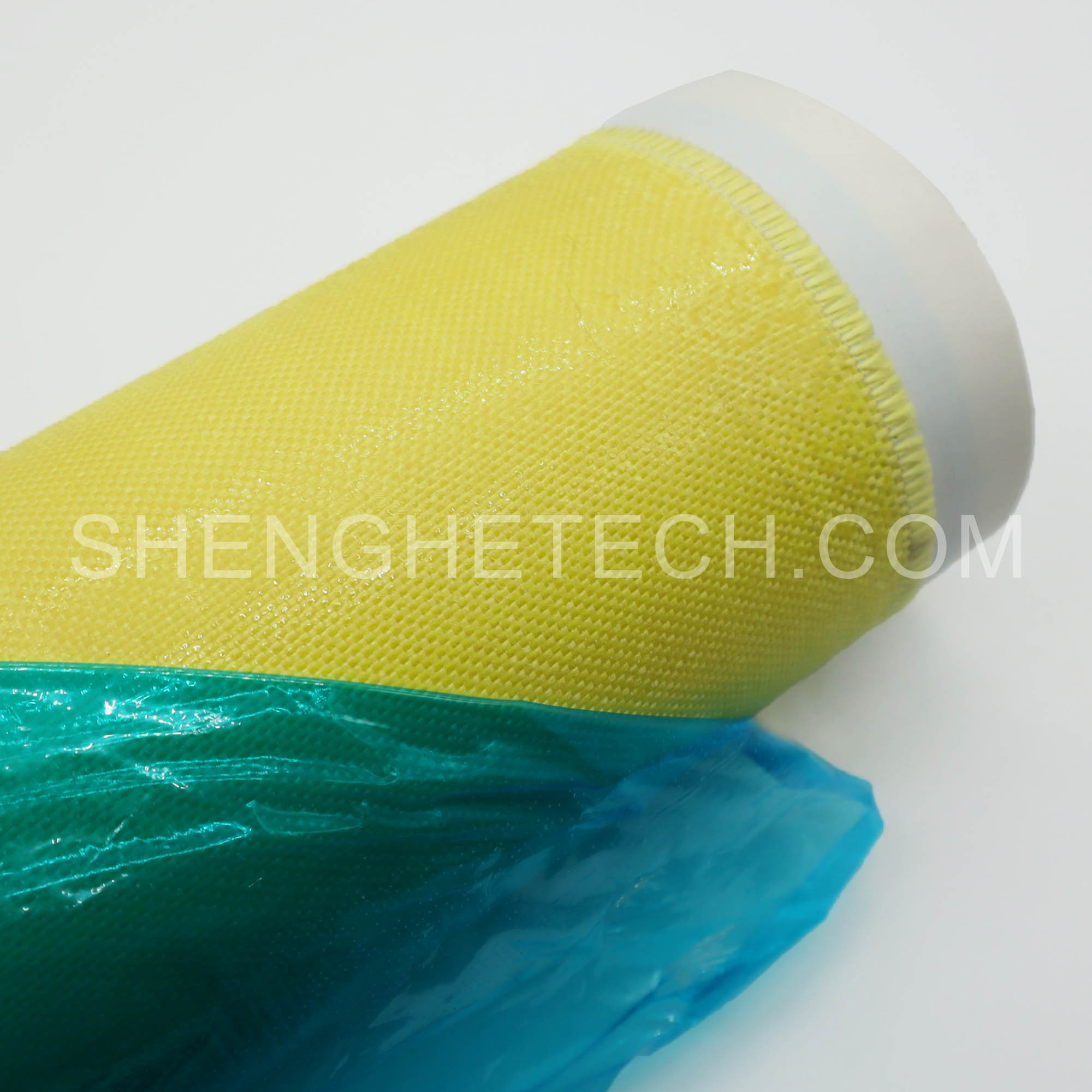

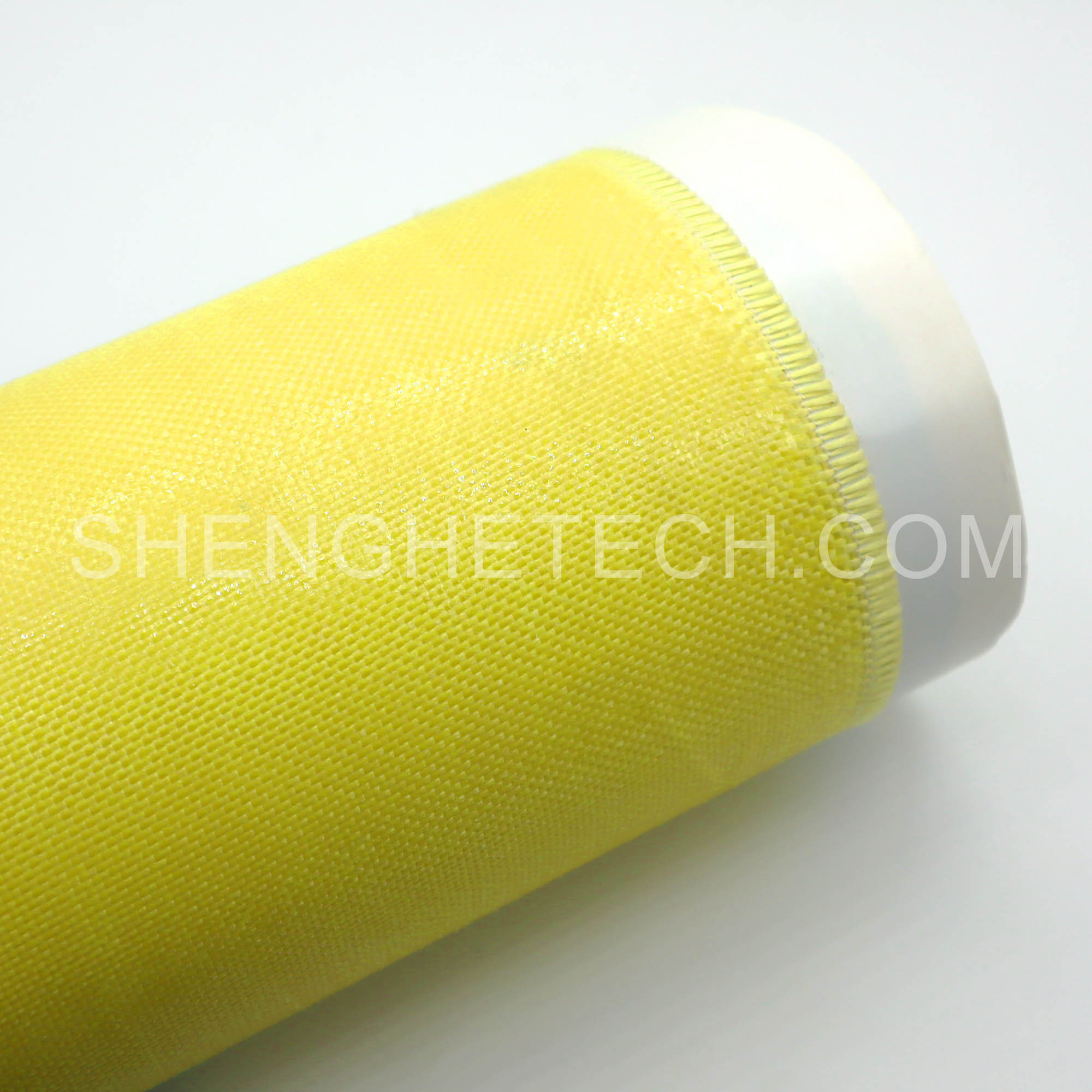

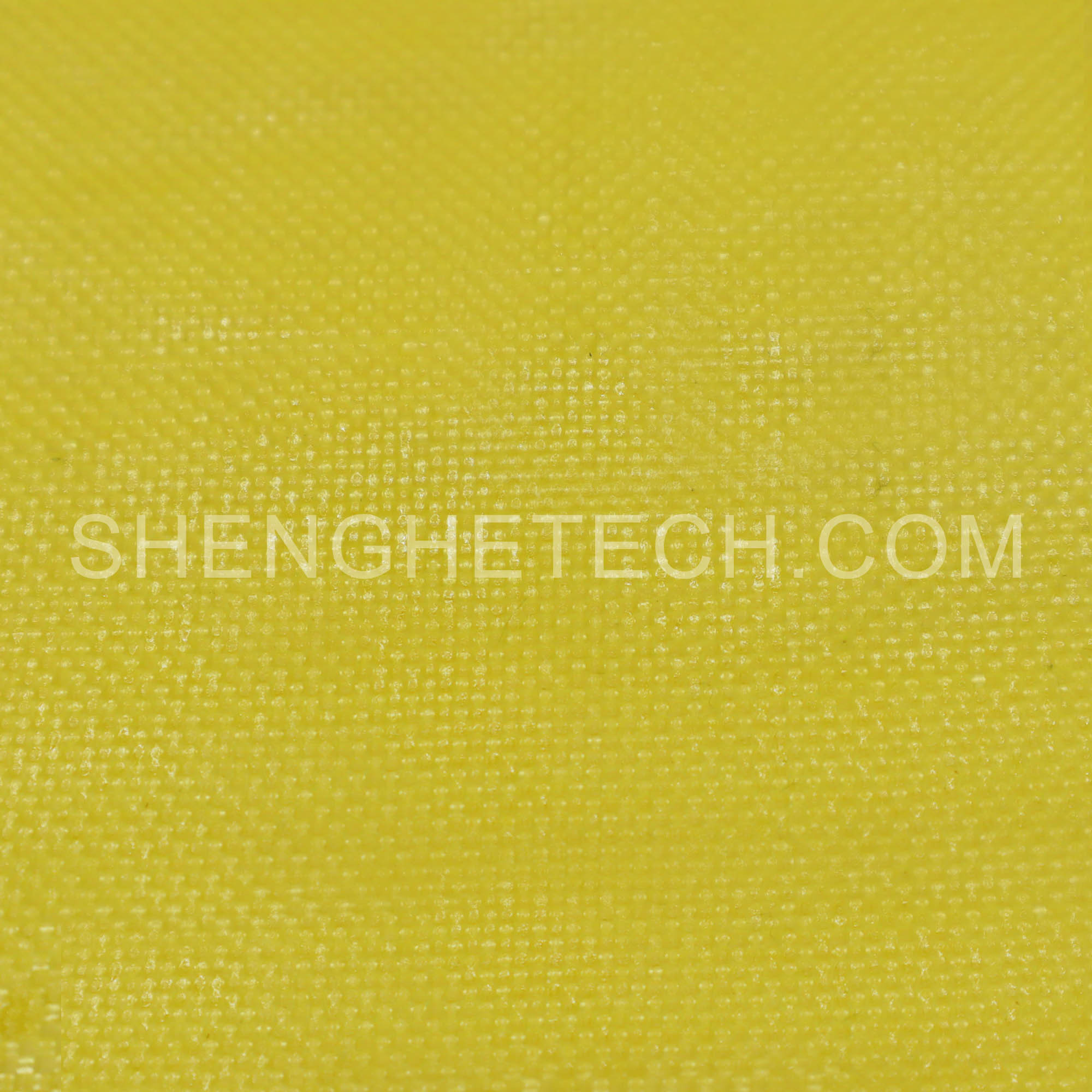

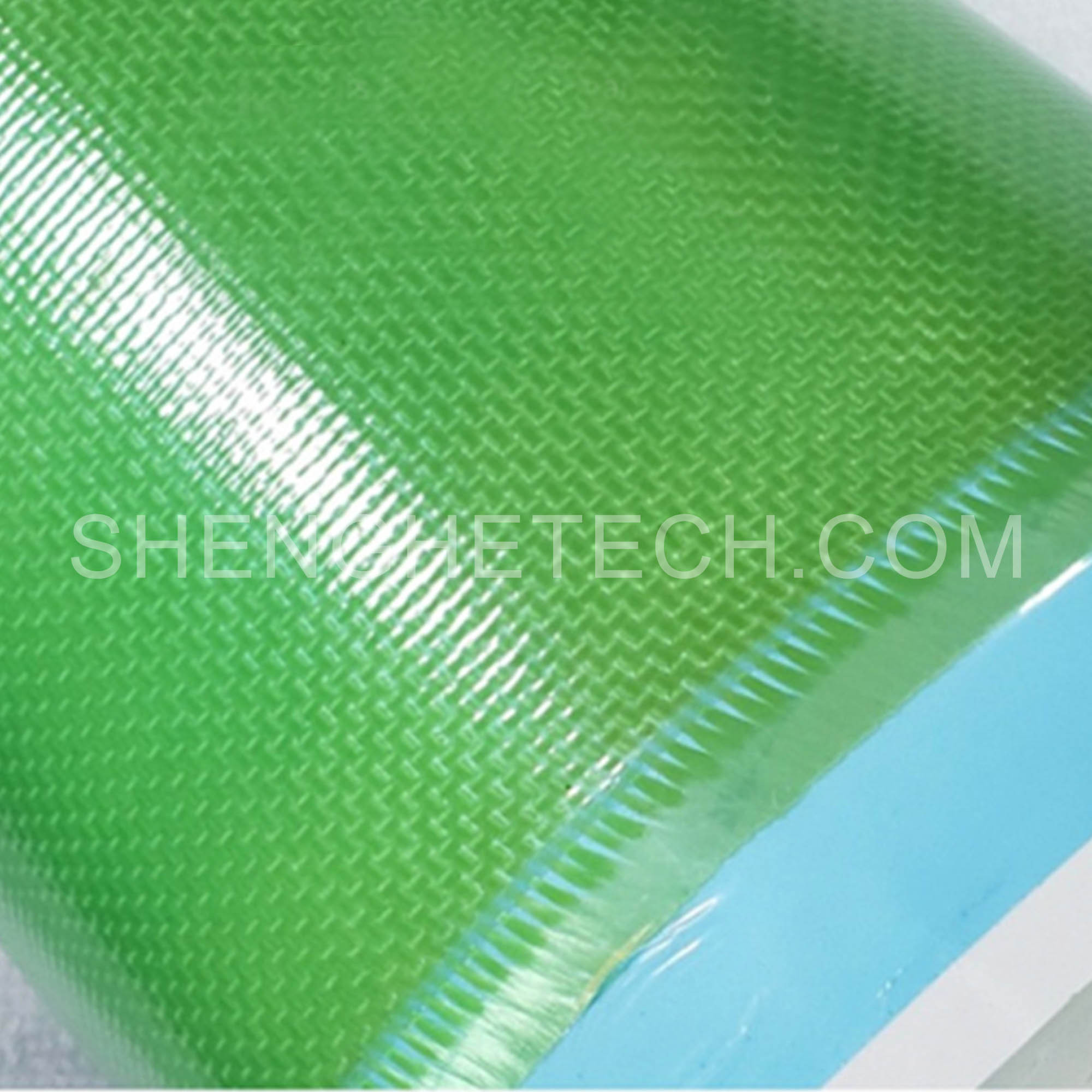

What Is Para-Aramid Prepreg Fabric?
Para-aramid prepreg fabric is a composite material made by impregnating para-aramid fibers (poly(paraphenylene terephthalamide), PPTA) with thermosetting or thermoplastic resin matrices such as epoxy or polyurethane through an impregnation process. Its core features include high strength, high modulus, high heat resistance (does not decompose at 560°C), and low density (only 1/5 of steel).
Manufacturing Process of Para-Aramid Prepreg fabric
Preparation of Fibers: Para-aramid resin is synthesized via low-temperature solution polycondensation. Fibers are produced through dry-jet wet spinning or wet spinning. For example, DuPont’s Kevlar® fibers utilize interfacial polymerization combined with liquid crystal spinning technology.
Resin Impregnation: Aramid fiber bundles are immersed in molten or solution-state resin, controlling resin content (typically 30%-40%) and uniformity. Common resins include epoxy (high-temperature resistance, strong adhesion) and polyimide (extreme temperature tolerance).
Molding and Curing: The resin-impregnated fibers are cured via hot pressing (160–200°C, 0.8–1.2 MPa pressure) to form the prepreg. Curing pressure and time directly impact fiber volume fraction and interlaminar strength.
Post-Treatment: Includes cutting, rolling, and surface treatments (e.g., flame retardants or hydrophobic coatings) to enhance performance.
Performance Characteristics of Para-Aramid Prepreg fabric
Mechanical Properties: Tensile strength of 25–40 GPa (5–6× steel), modulus of 300–400 GPa, and elongation at break of 2%–4%.
Thermal Properties: Long-term service temperature range of -196°C to 204°C, short-term resistance up to 560°C, and low thermal expansion coefficient (transverse: 59×10⁻⁶/°C).
Chemical and Flame Resistance: Resistant to acids, alkalis, and organic solvents; limiting oxygen index (LOI) >28，vertical burning rating V-0.
Electrical Insulation: Low dielectric constant (3.5–4.5) and dissipation factor (0.005–0.008), ideal for high-frequency circuit boards.
Technical Specifications of Para-Aramid Prepreg Fabric
|
Items
|
Parameter
|
|
Grams per Square Meter
|
200 g/m²
|
|
Thickness
|
0.26 mm (±0.02 mm)
|
|
Density
|
1.45 g/cm³
|
|
Warp and Weft Density
|
8.7×8.7 warp/cm² (plain weave)
|
|
Width
|
50–150 cm (customizable)
|
|
Color
|
Yellow (customizable)
|
|
Tensile Strength (Warp/Weft)
|
≥2100 MPa (warp) / ≥2000 MPa (weft)
|
|
Compressive Strength
|
≥170 MPa
|
|
Interlaminar Shear Strength
|
≥40 MPa
|
|
Flexural Modulus
|
120 GPa
|
|
Long-term Service Temperature
|
-196℃ to 230℃
|
|
Short-term Heat Resistance
|
560℃ (no decomposition)
|
|
Coefficient of Thermal Expansion (CTE)
|
Transverse: 59×10⁻⁶/℃ / Longitudinal: -0.7×10⁻⁶/℃
|
|
Limiting Oxygen Index (LOI)
|
≥28
|
|
Flame Retardancy
|
UL94 V-0
|
|
Smoke Density (Dsmax)
|
≤300 (ASTM E662)
|
|
Dielectric Constant (1MHz)
|
3.5–4.0
|
|
Dielectric Loss Factor (tanδ)
|
≤0.008
|
|
Volume Resistivity
|
≥1×10¹⁵ Ω·cm
|
Applications of Para-Aramid Prepreg fabric
1. Aerospace: Aircraft skins, rocket fairings, satellite structures, significantly reducing weight (saving $30,000 per kilogram reduced in spacecraft).
2. Defense and Military: Bulletproof vests, armored vehicle panels, helmets, capable of withstanding light machine gun fire; weight as low as 1.5 kg.
3. Automotive: Brake pads, tire cord, turbocharger hoses, improving wear resistance and high-temperature durability.
4. Sports Equipment: Tennis rackets, skis, fishing rods, combining lightweight properties with high strength.
5. Electronics and Telecommunications: Fiber optic cable reinforcement (e.g., ADSS cables), enhancing tensile strength and aging resistance, with a lifespan of 30 years.
FAQ Section
Q1: Is para-aramid prepreg fabric better than carbon fiber?
A1: Para-aramid prepreg fabric and carbon fiber prepreg serve different purposes. Para-aramid prepreg offers superior impact resistance, flexibility, and flame retardancy, making it ideal for ballistic protection, aerospace shielding, and industrial safety applications. Carbon fiber prepreg, however, excels in stiffness, tensile strength, and lightweight properties, making it better suited for structural components where rigidity is critical. Choosing between the two depends on specific application requirements.
Q2: What resins are commonly used with para-aramid prepreg fabric?
A2:The most commonly used resins for para-aramid prepreg fabric include epoxy, polyimide, and polyurethane. Epoxy resin offers excellent adhesion and high-temperature resistance, while polyimide resin provides extreme thermal stability, ideal for aerospace and high-performance military applications.
Q3: How heat resistant is para-aramid prepreg fabric?
A3:Para-aramid prepreg fabric can withstand continuous service temperatures ranging from -196°C to 204°C and short-term exposure up to 560°C without decomposition, making it an excellent choice for high-temperature environments.
Q4: What are typical applications of para-aramid prepreg fabric?
A4:Typical applications include aerospace components (such as rocket fairings and satellite structures), military armor (bulletproof vests and helmets), automotive parts (brake pads and turbo hoses), sports equipment (tennis rackets, skis), and telecommunications (fiber optic cable reinforcement).
Q5: What are the advantages of using para-aramid prepreg fabric over traditional woven fabrics?
A5:Compared to traditional woven fabrics, para-aramid prepreg fabric offers higher fiber volume fractions, better uniformity, superior mechanical properties, enhanced heat resistance, and improved chemical durability, leading to lighter, stronger, and longer-lasting composite parts.
