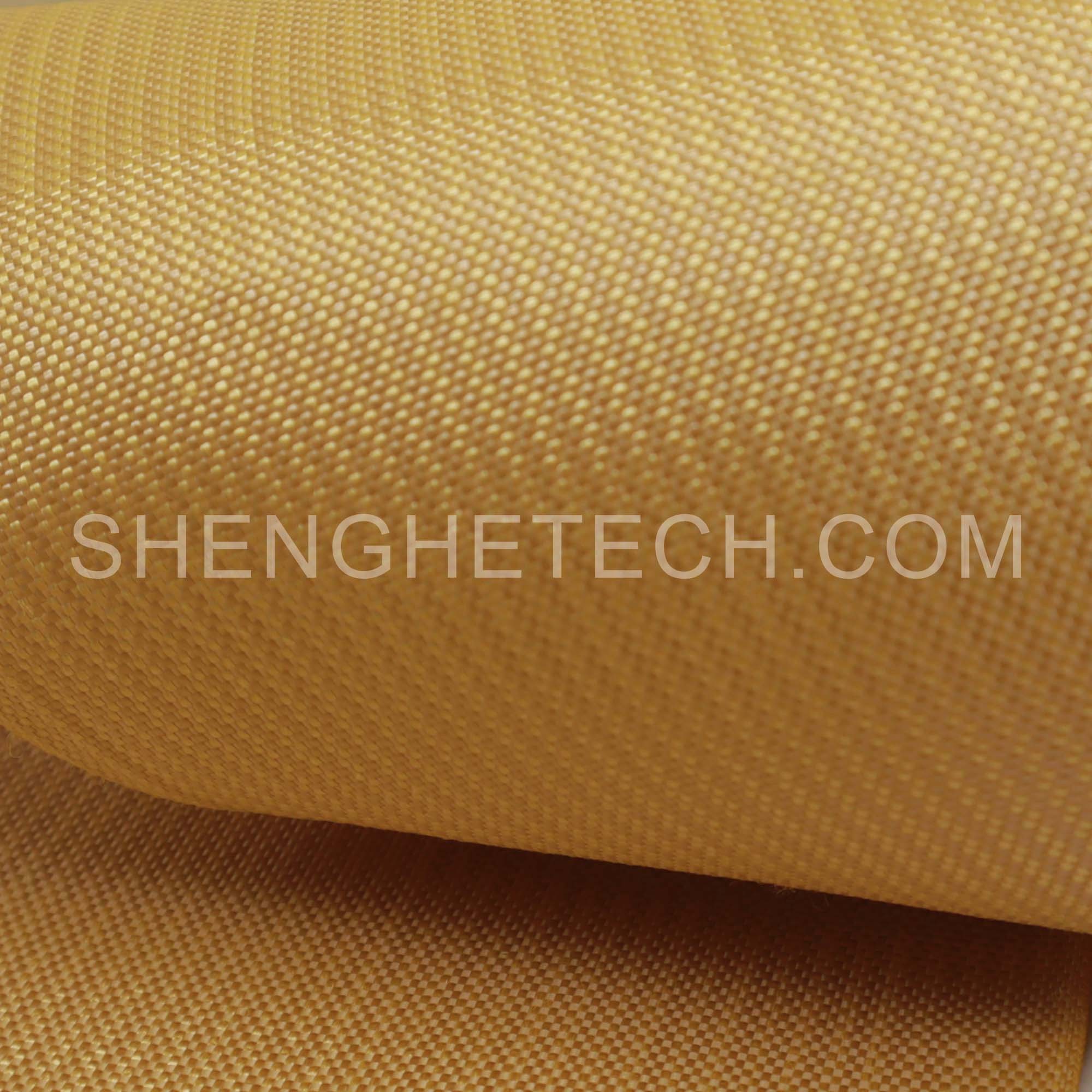

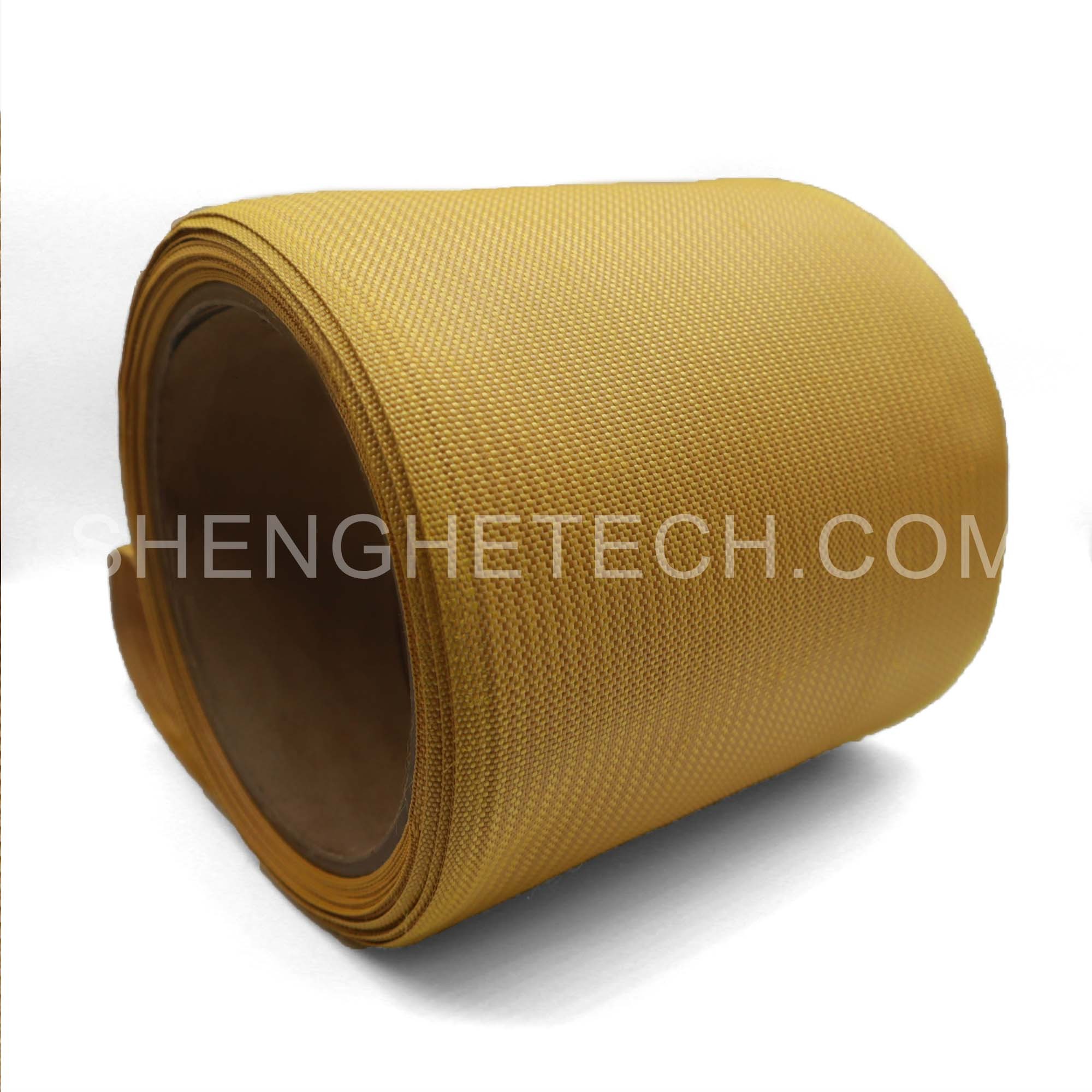

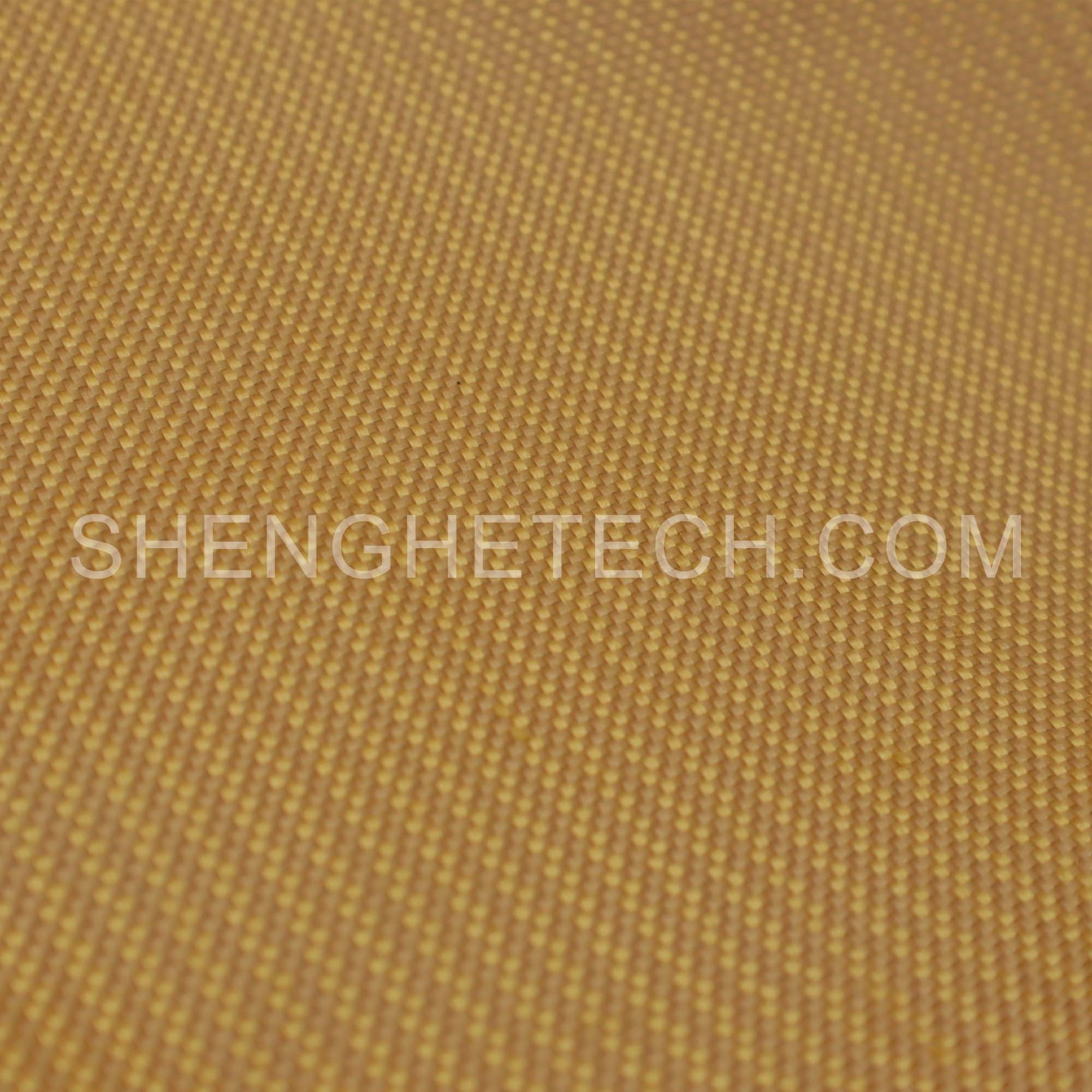

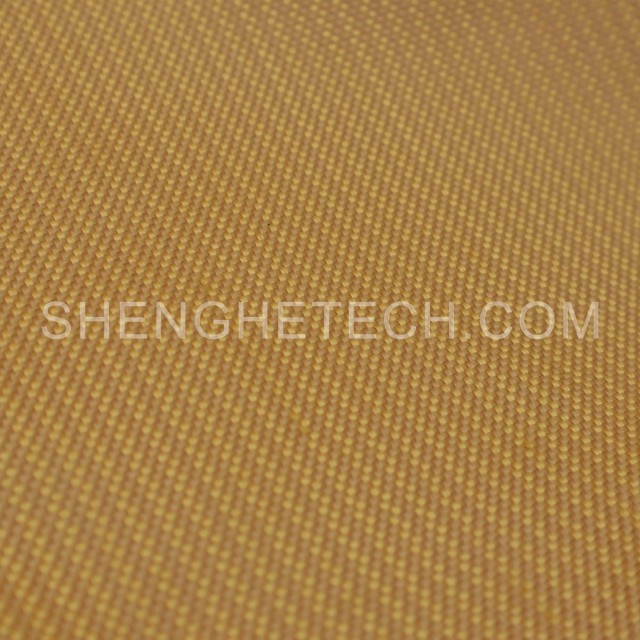

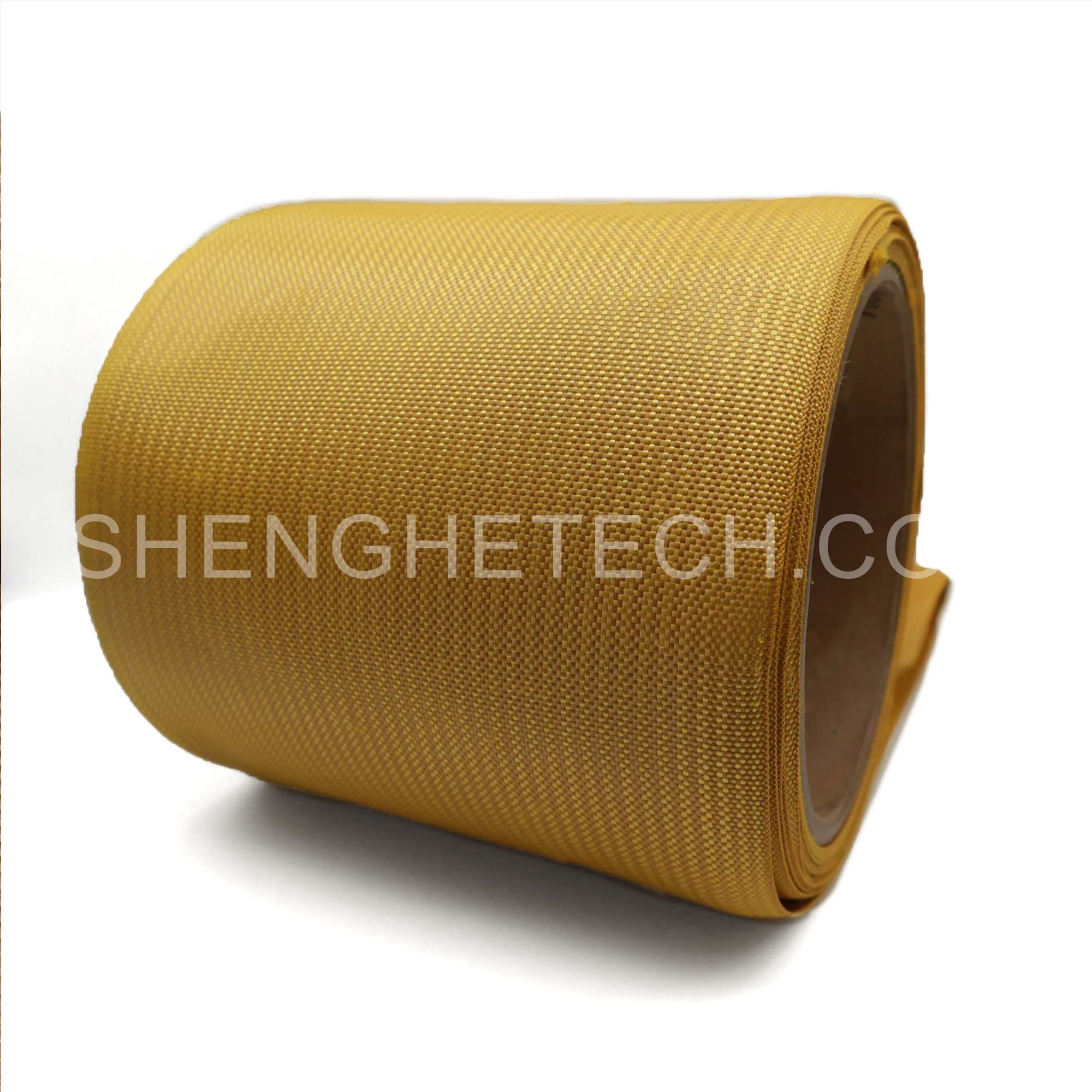

What is PBO Tape?
PBO Tape (Poly-p-phenylene benzobisoxazole tape) is a high-strength, lightweight, and heat-resistant reinforcement material made from PBO fibers (commercially known as Zylon®). It’s one of the strongest synthetic fibers available today, outperforming steel, carbon fiber, and aramid in strength-to-weight ratio.
Key Features of PBO Tape
- Ultra-high tensile strength (5.8 GPa, ~5x stronger than steel)
- Exceptional heat resistance (stable up to 300°C long-term, 500°C short-term)
- Flame retardant (LOI 68 – virtually non-combustible)
- Lightweight (Density: 1.54 g/cm³, ~75% lighter than metals)
- Chemical resistance (resists acids, solvents, and fuels)
How PBO Tape Is Made
1. Fiber Synthesis
- Polymerization: Using 4,6-diaminoresorcinol hydrochloride (DAR) and terephthalic acid (TA) as raw materials, PBO polymer is generated by polycondensation in polyphosphoric acid (PPA) solvent.
- Liquid Crystal Spinning: The polymer solution is in a liquid crystal state and is extruded and spun by dry-jet wet spinning process (Dry-Jet Wet Spinning), and the primary fiber is formed after solidification in a coagulation bath.
- Thermal Treatment: High temperature heat treatment: The fiber is heat treated in an inert atmosphere above 500°C to eliminate defects and improve molecular orientation to obtain high crystallinity fiber.
2. Tape Processing
- Unidirectional Tape (UD): Parallel-aligned fibers bonded with resin or coating

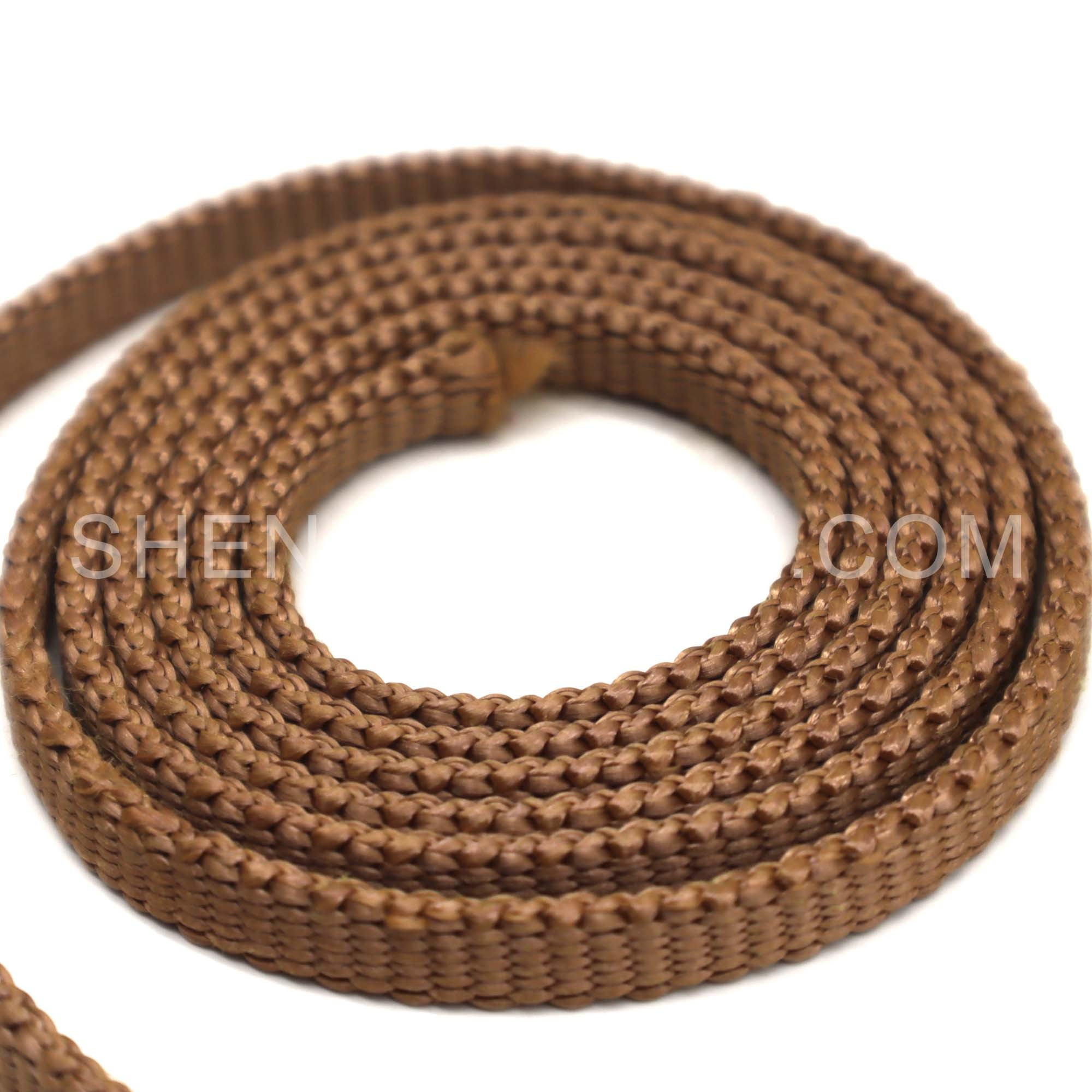

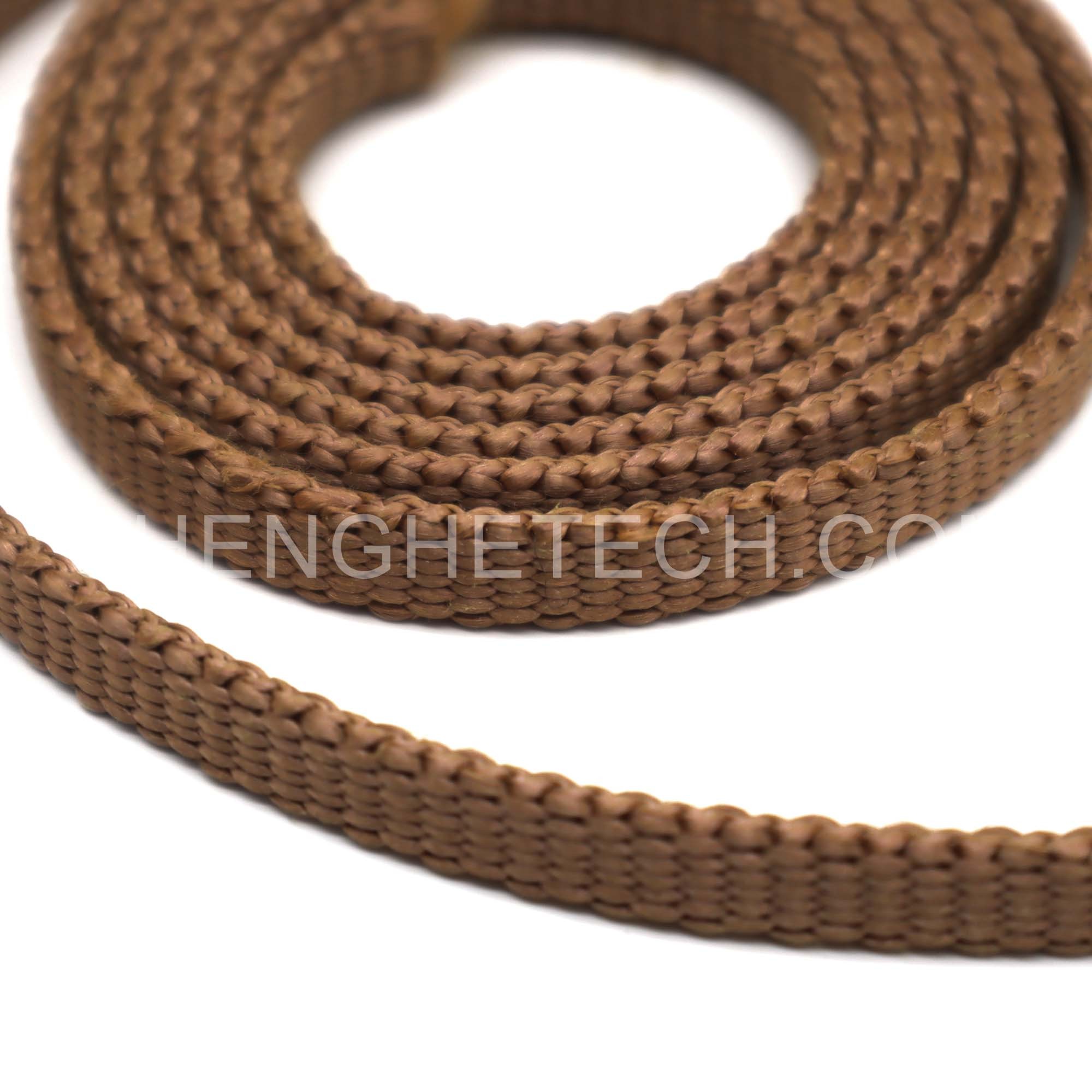

- Braided Tape: Woven 2D/3D for cross-strength
- Prepreg Tape: Resin-impregnated ready-to-cure material
Performance Specifications
| Property | Value | Standard |
|---|---|---|
| Fiber Diameter | 12–15 μm | ISO 11567 |
| Density | 1.54 g/cm³ | ASTM D792 |
| Tensile Strength | 5.8 GPa | ASTM D885 |
| Tensile Modulus | 270 GPa | ASTM D885 |
| Elongation at Break | 2.5% | ISO 2062 |
| Thermal Expansion | -6×10⁻⁶ /K | ASTM E831 |
| Dielectric Constant | 3.0 @ 1 MHz | ASTM D150 |
Applications of PBO Tape
Aerospace
- Satellite structural components (30% lighter than aluminum)
- Rocket nozzle insulation for extreme thermal protection
Defense and Protective Equipment
- Ballistic plates (NIJ Level IV)
- Outer layer of fireproof suits (withstand 1000°C short-term)
Industrial and Energy
- High-pressure hydrogen tanks (burst pressure >70 MPa)
- Wind turbine blades (fatigue-resistant, lightweight)
Electronics and Sports
- Flexible circuit boards (low Dk, high heat resistance)
- Premium sports gear like rowing masts, racket frames
Why Choose PBO Tape Over Alternatives?
| Material | Strength (GPa) | Modulus (GPa) | Max Temp (°C) | Best For |
|---|---|---|---|---|
| PBO | 5.8 | 270 | 300 | Extreme heat/strength |
| Carbon Fiber | 5.5 (T800) | 294 | 200 | Stiffness/weight |
| Kevlar® | 3.6 | 130 | 150 | Impact resistance |
| UHMWPE | 3.5 | 120 | 80 | Lightweight armor |
Conclusion
PBO Tape represents a cutting-edge composite reinforcement material ideal for mission-critical applications. With unparalleled tensile properties and heat resistance, it is a powerful alternative to carbon and aramid fibers—especially in aerospace, defense, and high-end manufacturing.
