Meta-aramid laminated PTFE (polytetrafluoroethylene) membrane fabric, commonly known as Nomex fabric or Kevlar Nomex fabric, is a high-performance composite material that combines high strength, heat resistance, flame retardancy, waterproofness, breathability, and chemical stability. Known as the “golden protective fabric,” it is widely applied in fields requiring the highest levels of safety protection. This waterproof fabric is essential for frontline safety equipment, industrial workwear, and military applications.
Detailed Information and Core Composition (Meta Aramid Fabric / Meta-Aramid Fabric)

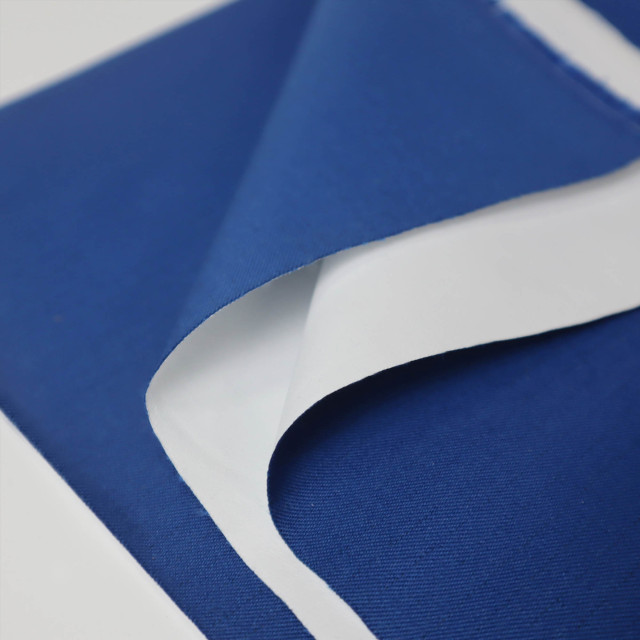

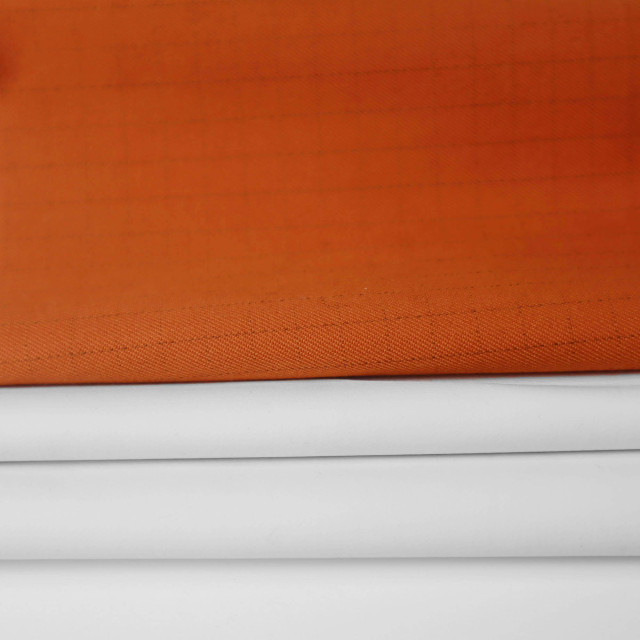

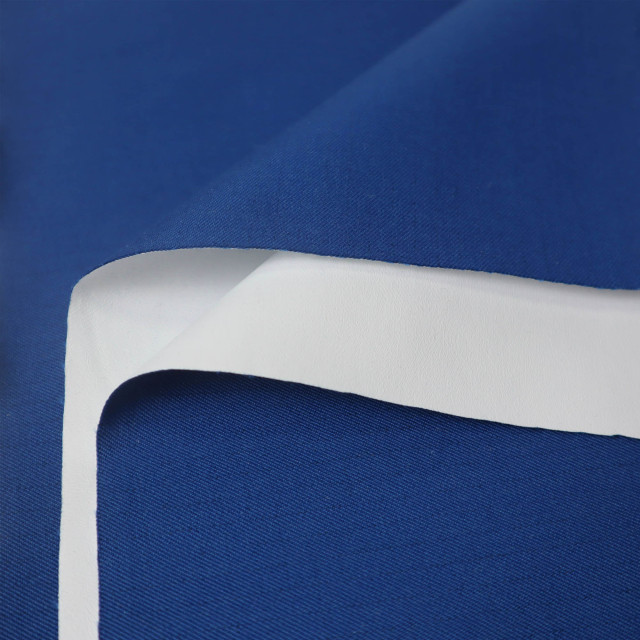

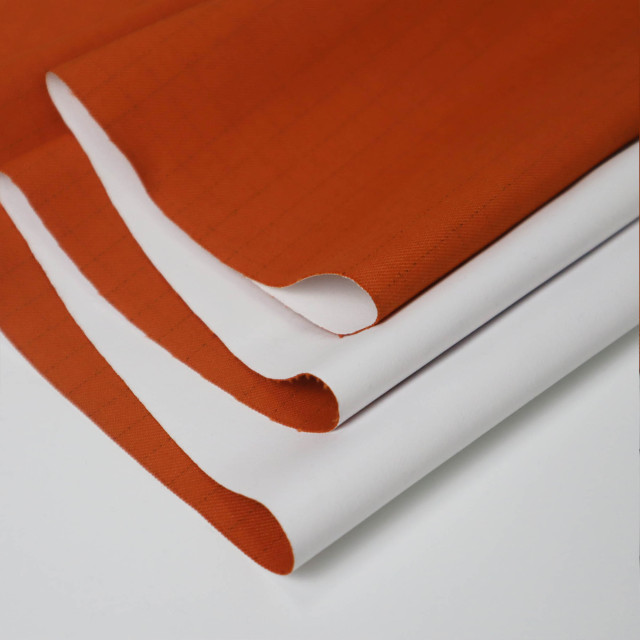

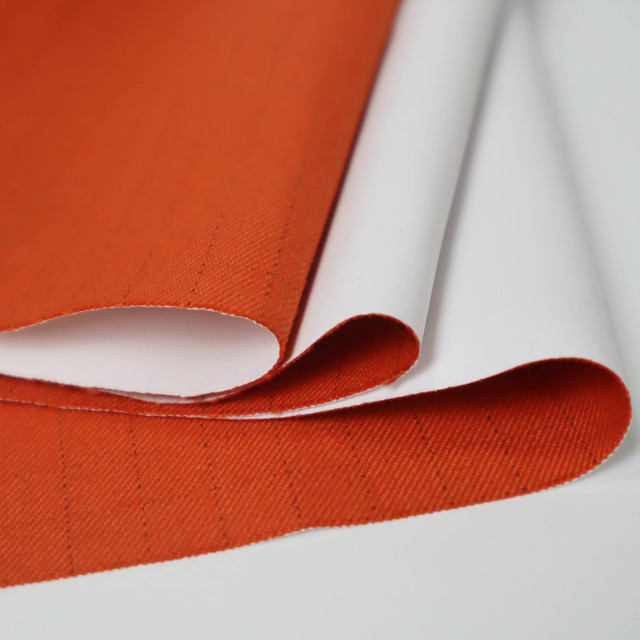

This fabric features a typical “sandwich” composite structure, made by laminating two layers through a specialized process. Meta-aramid fabric forms the structural backbone, providing superior mechanical and thermal protection.
Outer Layer: Meta-Aramid Base Fabric (Nomex Fabric by the Yard, Kevlar, and Nomex Fabric)
- Material: Primarily composed of meta-aramid (e.g., DuPont Nomex fabric), sometimes blended with a small proportion (≈20%) of para-aramid (e.g., Kevlar®) to enhance abrasion resistance and strength. This combination is often referred to as Nomex aramid fabric.
- Form: Typically woven fabric, serving as the structural backbone.
- Function: Provides flame retardancy, thermal protection, and mechanical strength. Many customers searching for Nomex fabric for sale choose this type for its balance of durability and protective performance.
Inner Layer: PTFE Microporous Membrane (Nomex IIa Fabric, Fabric Nomex)
- Material: Expanded PTFE (ePTFE), produced by stretching PTFE resin to form a microporous network structure.
- Form: An ultra-thin (micron-level) membrane.
- Function: Ensures waterproof and breathable properties. The pores are much smaller than water droplets (~100 μm) yet much larger than water vapor molecules (~0.0004 μm), effectively blocking liquid water while allowing perspiration vapor to escape.
Adhesive
Eco-friendly waterborne adhesive (e.g., polyurethane PU) is applied via precision coating to firmly bond the two layers without clogging PTFE pores. This ensures long-lasting performance of black Nomex fabric and other variants.
Manufacturing Process (Nomex Fabrics, Buy Nomex Fabric)
The production process requires high technical expertise, with the key challenge being to achieve strong lamination without damaging PTFE’s microporous structure.
Pre-treatment
- Base Fabric Treatment: Meta-aramid fabric may undergo raising (napping) to increase surface area, along with cleaning and corona treatment to enhance adhesion. This step is crucial when sourcing Nomex fabric manufacturers or Nomex fabric in bulk.
- PTFE Membrane Treatment: Since PTFE has extremely low surface energy (high inertness), it requires surface activation. Traditionally, sodium naphthalene treatment was used; more eco-friendly plasma treatment at atmospheric pressure is now preferred.
Lamination (Key Step)
- Adhesive Lamination (Wet Process): Adhesive is evenly coated onto the treated PTFE membrane or base fabric using precision rollers.
- Pressing: Layers are laminated under controlled temperature (≈100–130 °C), pressure, and tension.
- Curing: The composite fabric is dried in an oven and cured under specific temperature/humidity (e.g., 26–42 °C for 40–56 hours) to ensure optimal adhesive crosslinking and bond strength.
Post-finishing
- Width setting, cooling, and edge treatment.

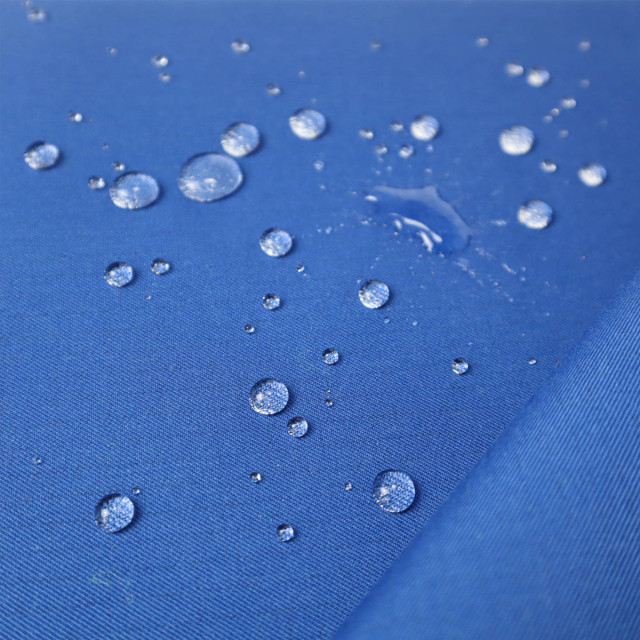

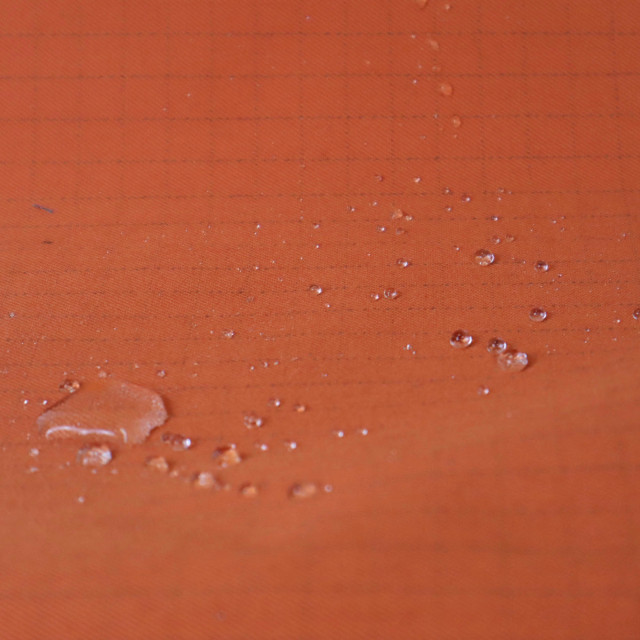

- Optional DWR (Durable Water Repellent) finish for lotus-leaf water-beading effect, ensuring waterproof fabric properties.
Quality Control & Packaging
- Rigorously tested for hydrostatic resistance, moisture vapor transmission, peel strength, and flame retardancy.
- Qualified rolls are packaged for delivery, ensuring consistent quality from meta aramid fabric China suppliers.
Product Properties (Nomex Fabric Properties)
| Property Category | Performance Characteristics |
|---|---|
| Thermal Protection | Excellent flame resistance: chars without burning, self-extinguishes when removed from flame. Heat resistance: withstands continuous 200–220 °C, short-term >500 °C. |
| Water Resistance | High hydrostatic head (>10,000 mm H₂O) blocks liquids, oil, and chemical splashes. |
| Breathability | Microporous ePTFE allows sweat vapor to escape, keeping the body dry and reducing heat stress. |
| Chemical Stability | Resistant to acids, alkalis, and most chemicals due to the inherent inertness of PTFE and aramid. |
| Mechanical Properties | High tensile and tear strength, abrasion resistance from a woven base. |
| Durability | Excellent wash durability, weather resistance, fatigue resistance, and long service life. |
Technical Parameters
| Parameter | Typical Range/Value | Standard |
|---|---|---|
| Fabric Weight | 110–250 g/m² (common: 156 g/m², 210 g/m²) | ISO 3801 |
| Thickness | 0.15–0.35 mm | ISO 5084 |
| Hydrostatic Head | ≥50 kPa (≥10,000 mm H₂O) | ISO 811 |
| Moisture Vapor Transmission (WVT) | ≥5000–10,000 g/m²/24h | ISO 15496 |
| Thermal Protective Performance (TPP) | ≥40–60 cal/cm² | NFPA 1971 |
| Flame Retardancy | After-flame ≤2s; Damage length ≤100 mm | EN 14116, EN 532 |
| Tear Strength | ≥30–50 N (warp/weft) | ISO 13937 |
| Peel Strength | ≥15–20 N/5 cm | ISO 13934-1 |
Application Fields (What is Nomex Fabric, DuPont Nomex Fabric)
Firefighting Protective Clothing
Core application, compliant with EN469, NFPA 1971, and GB 8965.1 standards, ensuring comprehensive protection against heat, flames, water, and chemicals.
Industrial Protective Clothing
- Petrochemical: Protection against flash fire, arc, and chemical splash.
- Electric Power: Arc protection.
- Metallurgy & Foundry: Protection against radiant heat and molten metal splash.
Military & Emergency Response Gear
- Chemical Protective Suits: Inner lining for CBRN (Chemical, Biological, Radiological, Nuclear) protective clothing and shelters.
- Special Operations Gear: Balances protection and comfort in harsh environments.
High-end Outdoor & Safety Equipment
Extreme-protection tents, sleeping bags, smoke hoods, safety gloves, and more.
Selection and Usage Considerations (What is Nomex Fabric Made Of, Nomex Fabrics)
In summary, meta-aramid fabric and laminated Nomex fabric represent the cutting-edge of protective textile technology. By combining multiple performance traits—such as waterproofness and breathability—through advanced lamination, it serves as a critical material for safeguarding frontline personnel in extreme environments. For anyone looking to buy Nomex fabric, sourcing from reputable Nomex fabric manufacturers ensures consistent quality and safety performance.
