PBO Pulp| High-Performance Fiber Material for Advanced Industrial Applications

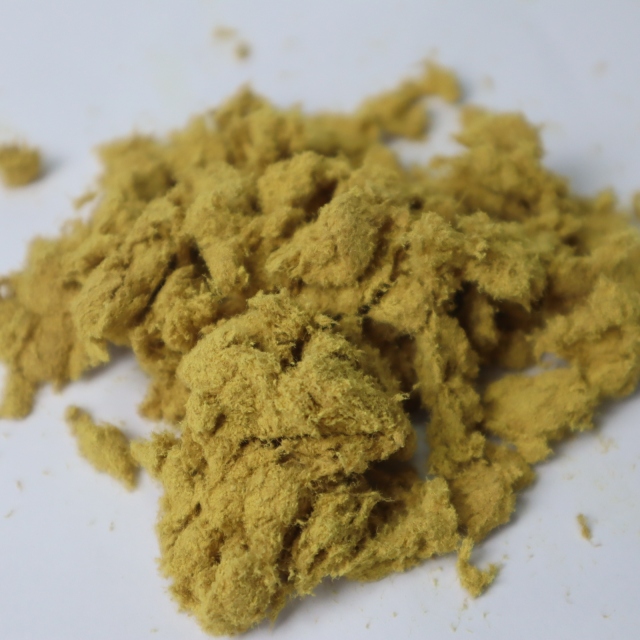

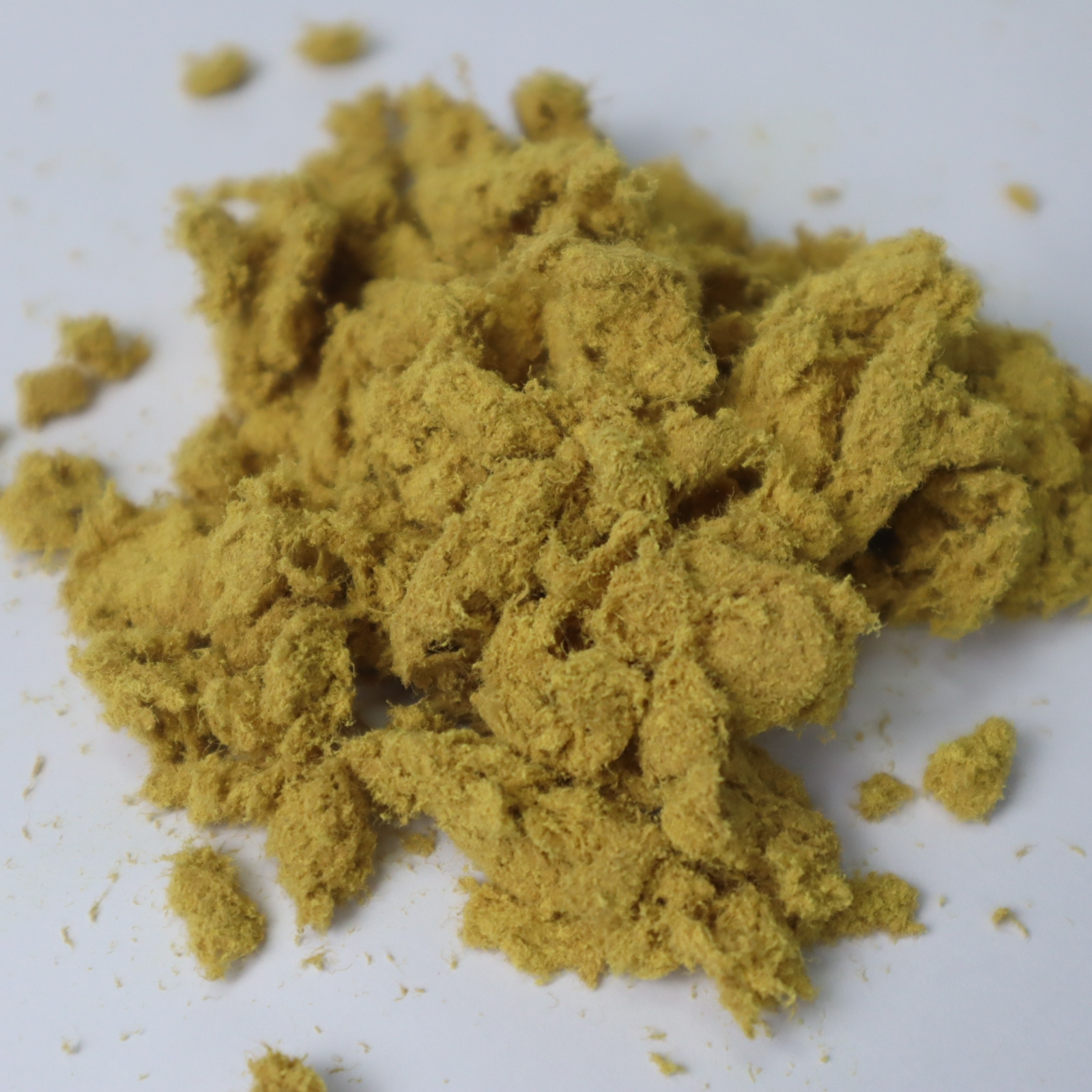

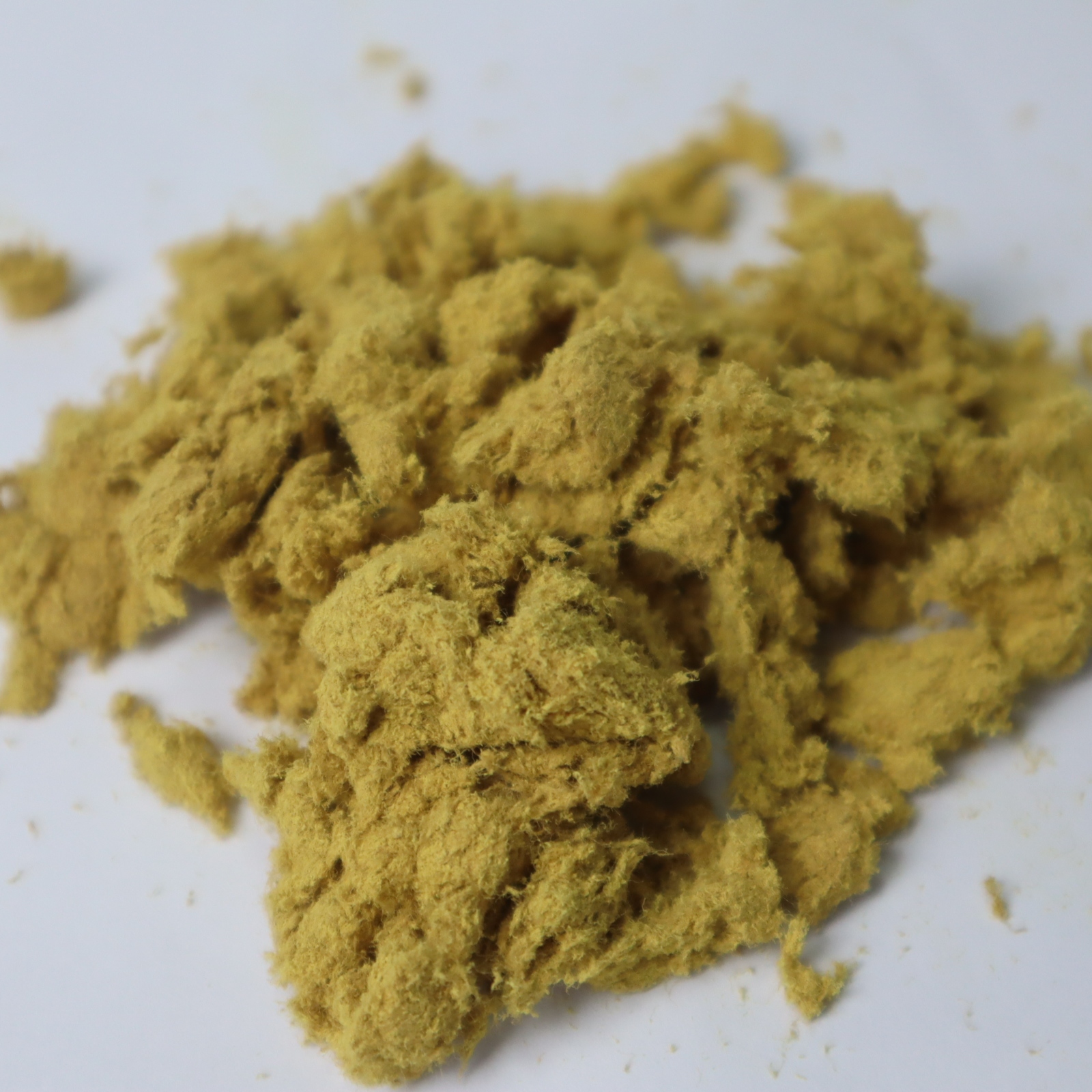

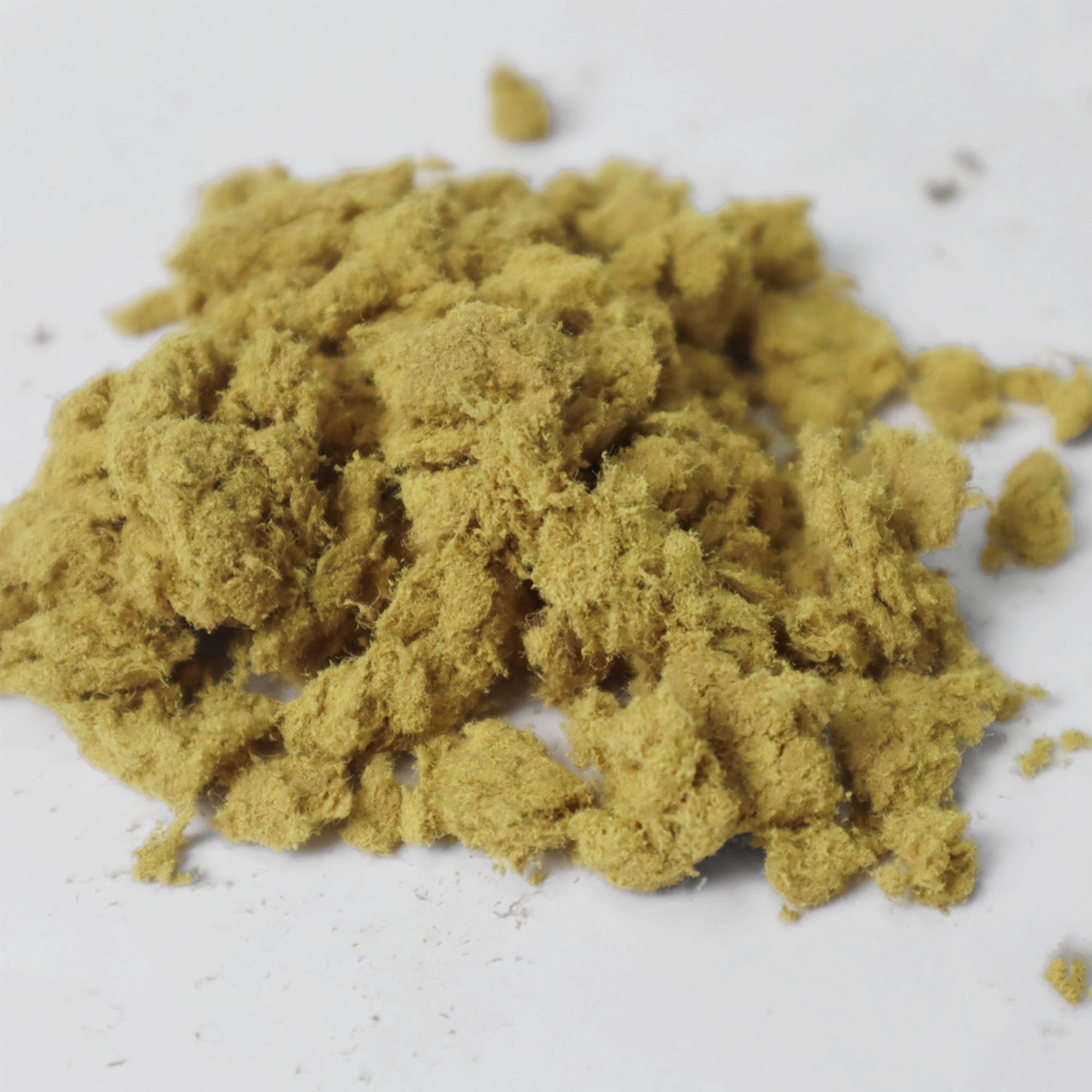

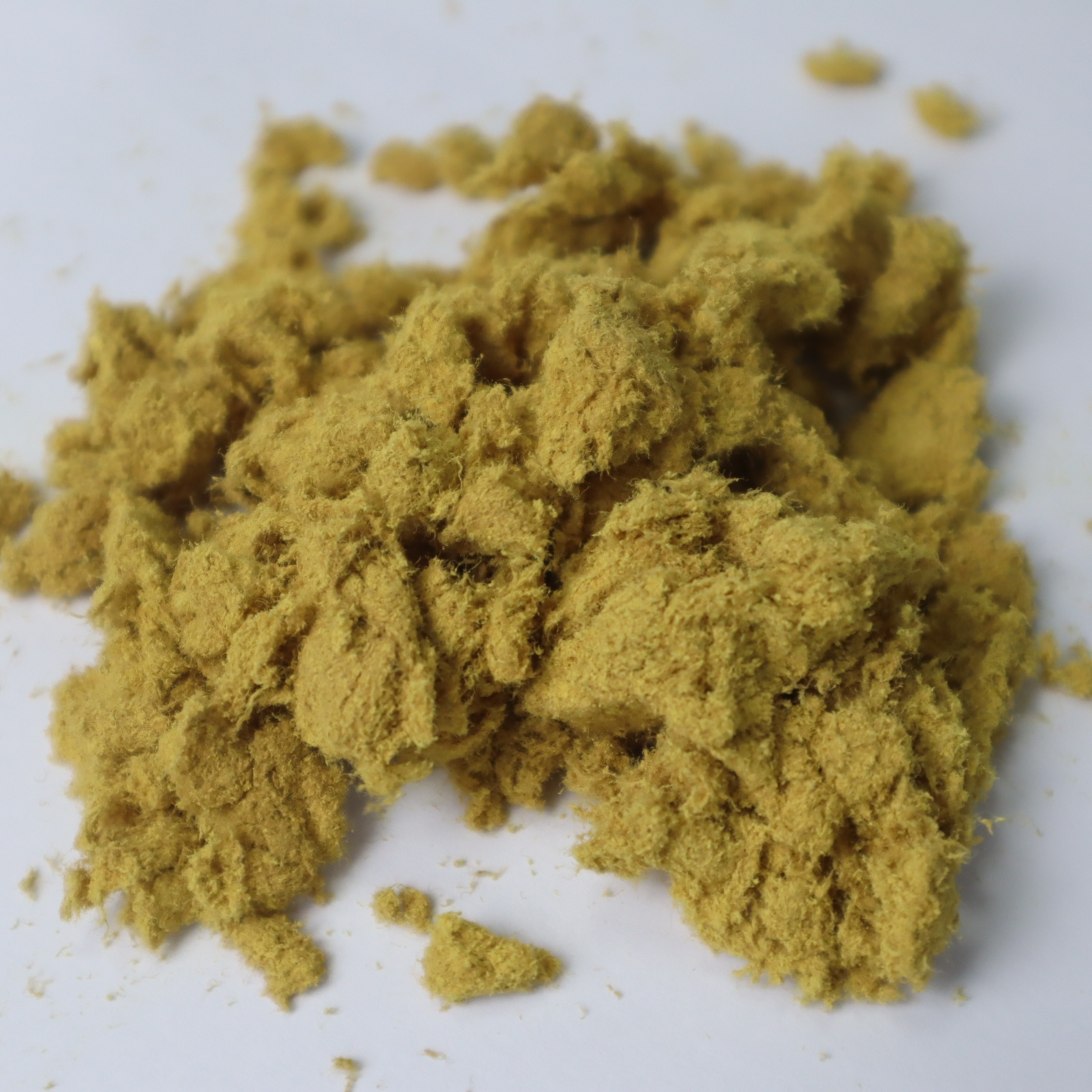

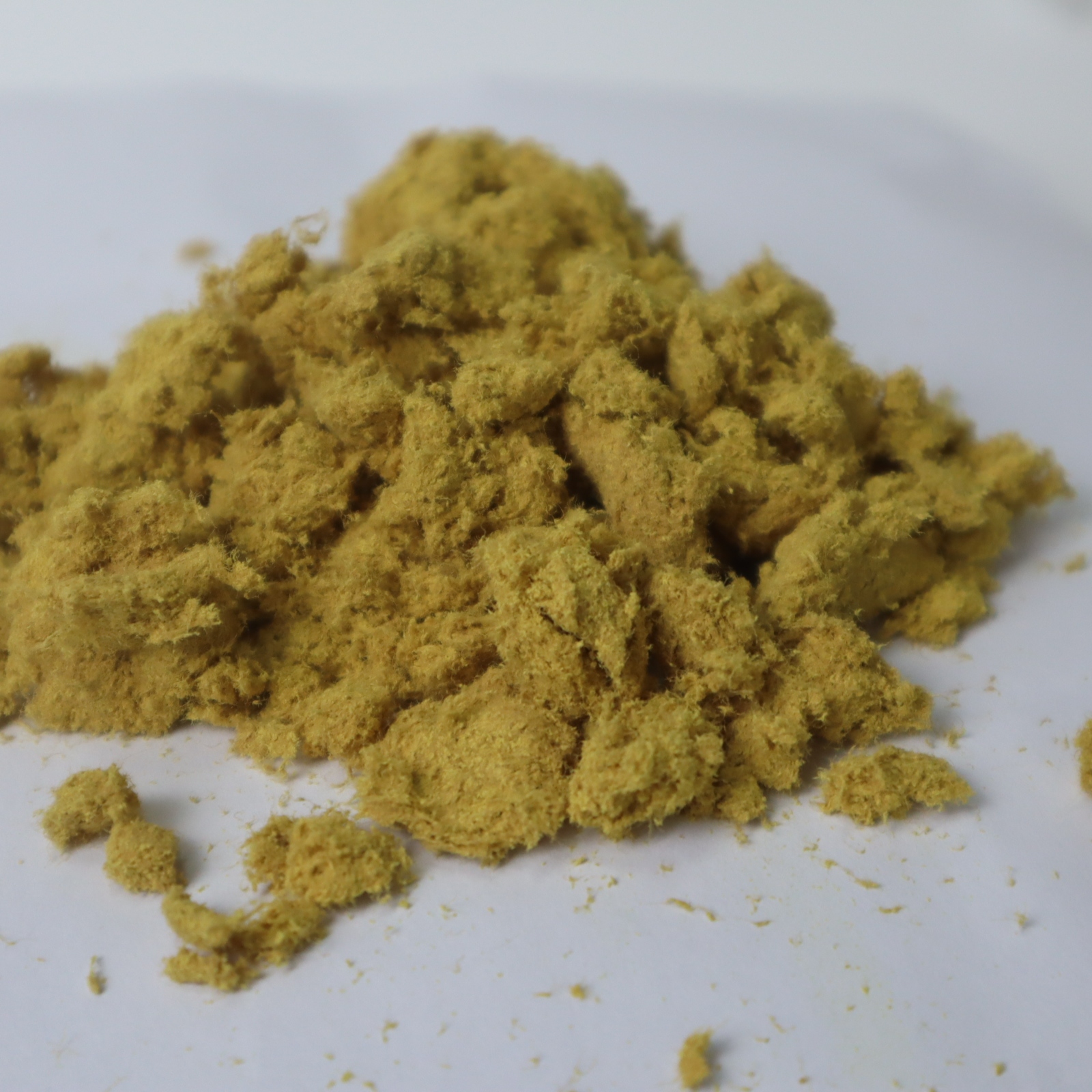

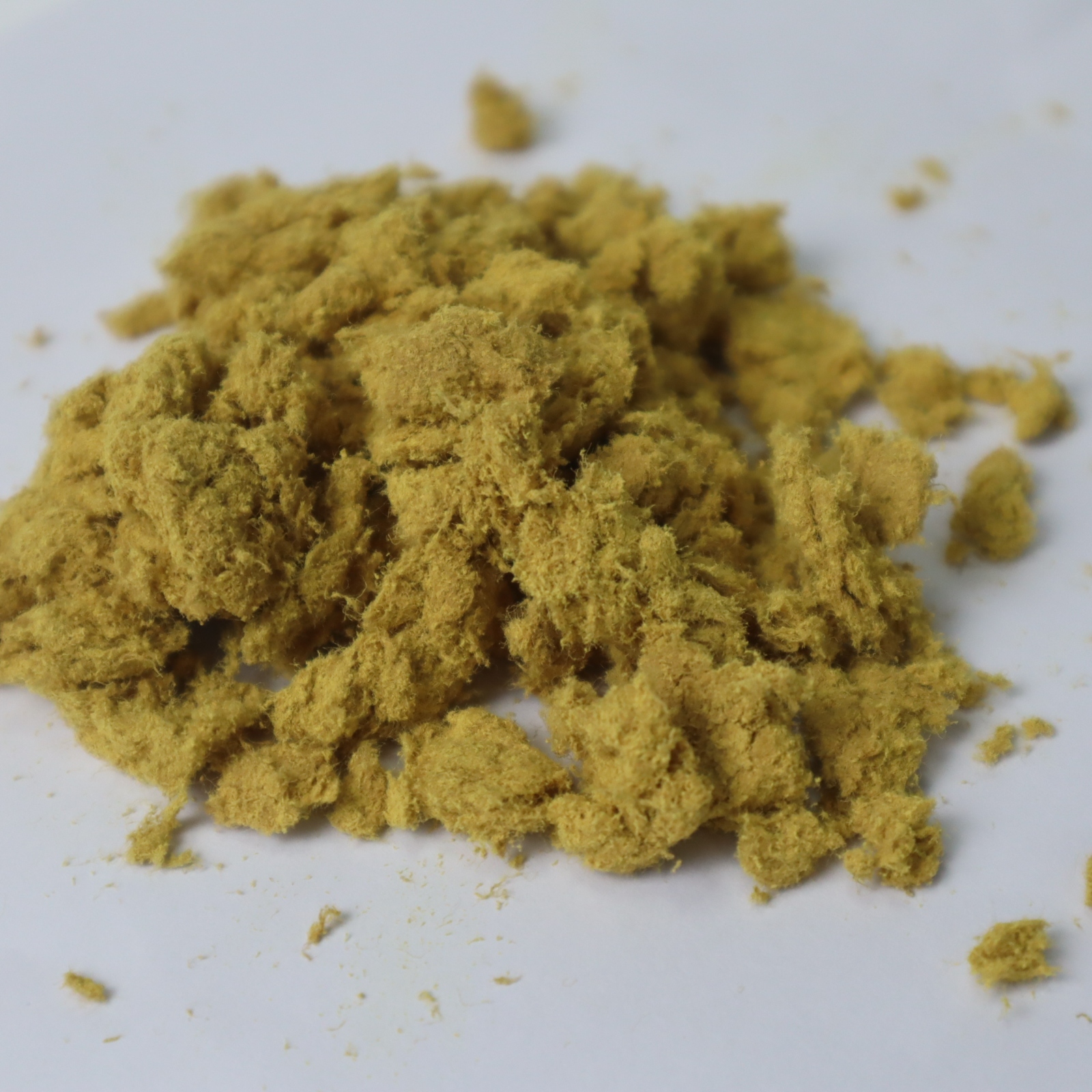

PBO pulp, also known as Polybenzoxazole (PBO) pulp or Zylon PBO pulp, is a high-performance differentiated fiber product made from poly(p-phenylene benzobisoxazole) (PBO) polymer through specialized processing. Suppose you are wondering what is PBO pulp. In that case, it is a unique fibrillated fiber that not only inherits the exceptional properties of PBO materials but also gains unique advantages from its pulp morphology, attracting growing attention in both high-tech and industrial sectors.

PBO pulp is a differentiated form of PBO fiber characterized by its high aspect ratio, large specific surface area, and significant fibrillation.

• Physical Properties: Density 1.55–1.56 g/cm³
• Surface Morphology: Rich micro-fibrils with a feather-like texture, providing higher surface area and aspect ratio.

Key Performance Features

• Mechanical Strength: Extremely high strength and modulus
• Thermal Stability: Outstanding performance at elevated temperatures
• Flame Retardancy: Inherently flame resistant
• Chemical Resistance: Excellent resistance to various chemicals
• Abrasion Resistance: Exceptional wear resistance

Production Processes

PBO pulp can be produced through two main methods:

1. Precipitation Method (Direct from Polymer)

This emerging technique eliminates the fiber spinning stage, producing pulp directly from PBO polymer solutions. It simplifies processing and reduces equipment investment and R&D costs.

Typical Process (Phosphoric Acid Precipitation):

• Polymer Solution Preparation: DAR dissolved in PPA, HCl removed, followed by TPA and P₂O₅ addition and polymerized at 150–200°C under stirring.
• Viscosity Adjustment: Diluted with orthophosphoric acid to <1000 cP viscosity.
• High-Speed Precipitation: Injected into dilute phosphoric acid under 1000–3000 rpm stirring at 30–40°C for 20–30 minutes, with ultrasonic treatment to promote crystallization.
• Post-Treatment: Filtered, washed, and dried to obtain PBO pulp.

Alternative precipitation methods use strong protonic acids (e.g., sulfuric acid, methane sulfonic acid) followed by water-based precipitation.

2. Mechanical Fibrillation (Fiber-Based)

This method utilizes PBO waste fibers, off-grade products, or textile residues.

• Pre-Treatment: Cut into 2–10 mm short fibers
• Suspension Preparation: Dispersed in water (0.1–8 wt%) with dispersants
• High-Shear Milling: Processed in a pulp refiner, fibrillating fibers into pulp

While efficient, mechanical processing may cause some surface damage to fibers.

Technical Parameters

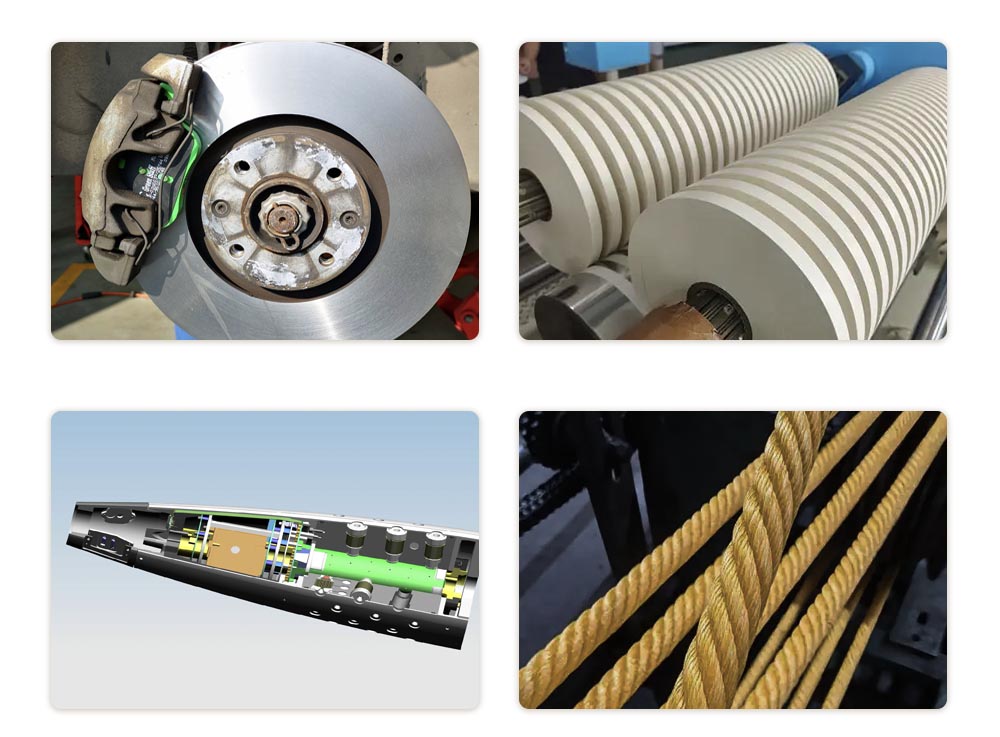

Application Areas

Friction and Sealing Materials: Replaces asbestos in brake pads, clutch facings, gaskets, and sealing fillers. Its wear resistance and heat stability extend product life and reliability.

Plastics and Rubber Reinforcement: Added to engineering plastics (e.g., PI, PEEK) or rubber to enhance strength, modulus, thermal resistance, and dimensional stability in demanding components.

Special Electrical Insulation: Provides high-performance insulation paper, PCB reinforcement, and electromagnetic shielding materials.

Aerospace and Defense: Applied in rocket thermal protection, aircraft structures, and lightweight composite armor.

Other Fields: Includes specialty cables, tires, conveyor belts, high-temperature filtration, firefighter gear, and premium sports equipment.

Future Outlook

With ongoing process optimization, expanding applications, and stricter environmental standards, PBO pulp will continue to improve in performance and cost efficiency. Its potential applications may extend to emerging fields such as new energy and biomedical engineering.

As a material combining high specific surface area, fibrillated structure, superior heat and flame resistance, and mechanical strength, PBO pulp (also known as Zylon PBO pulp) is expected to play an increasingly critical role across traditional industries and advanced technologies.
