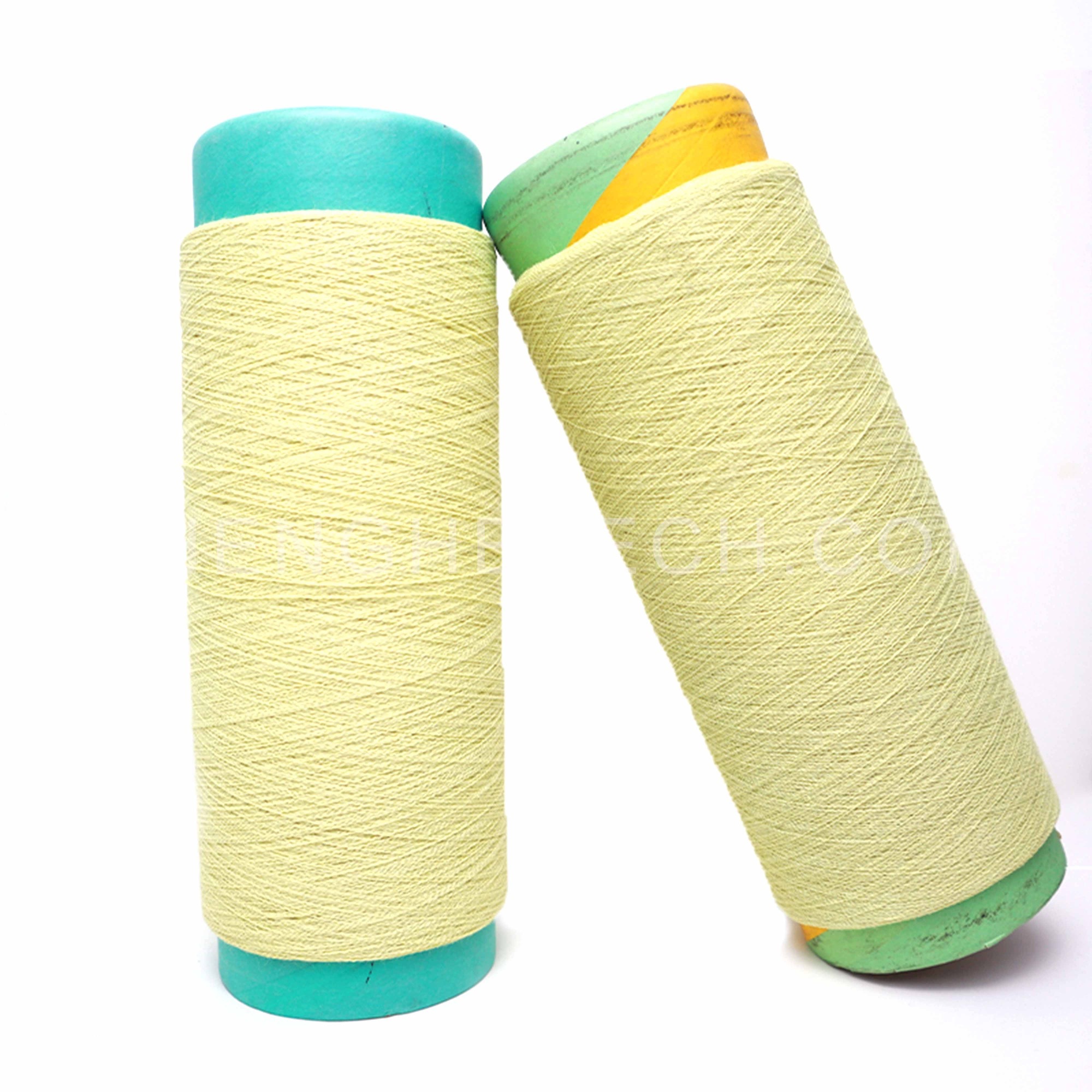

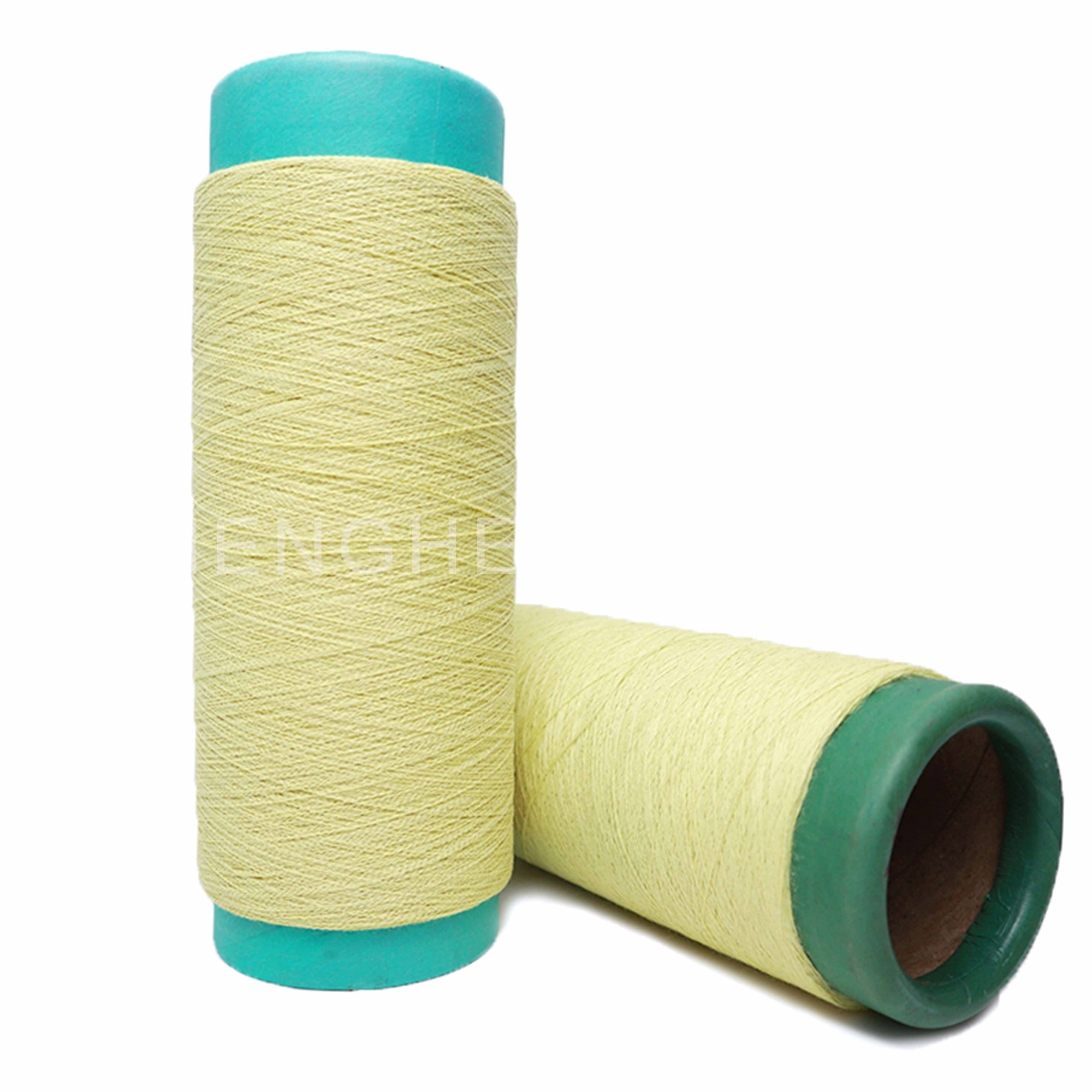

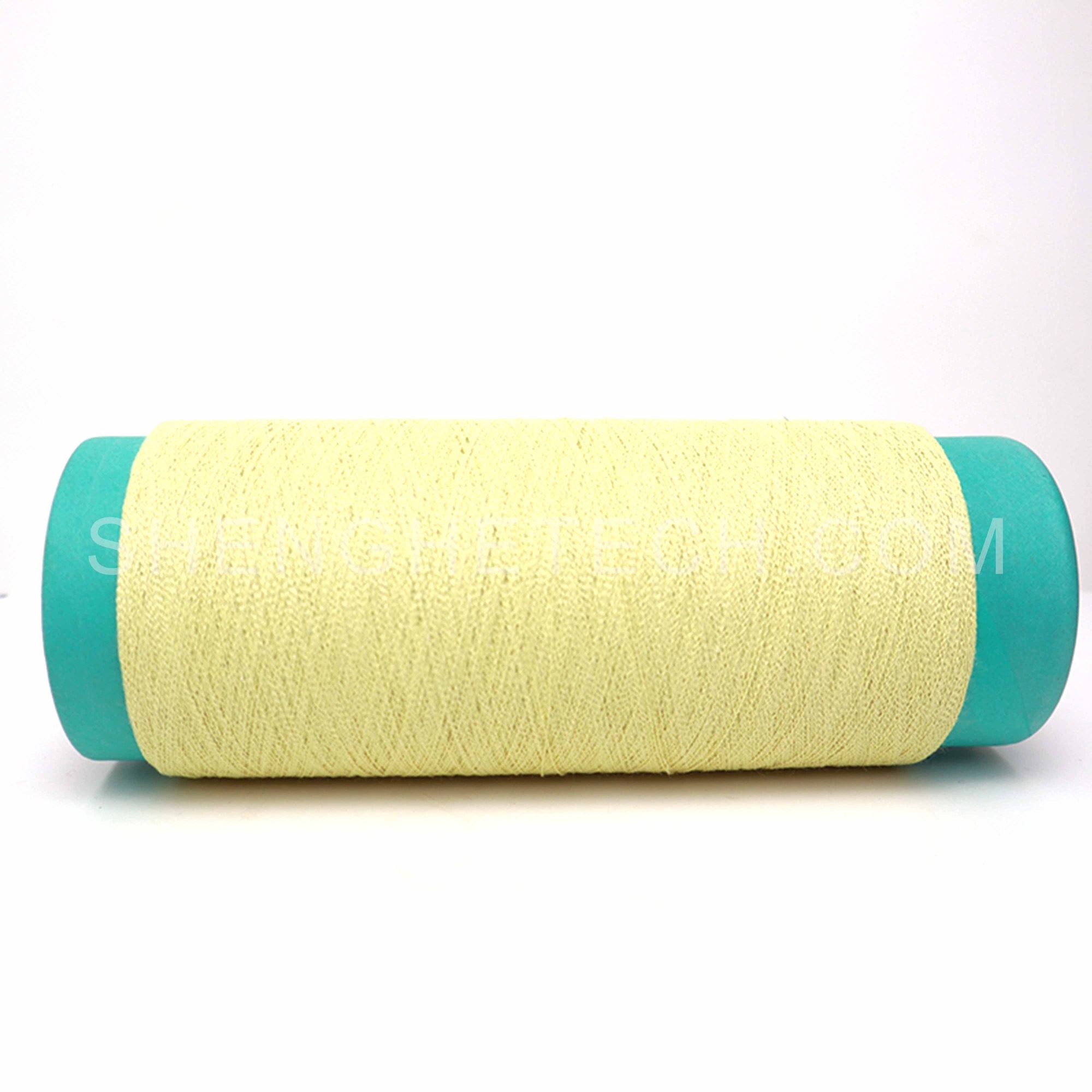

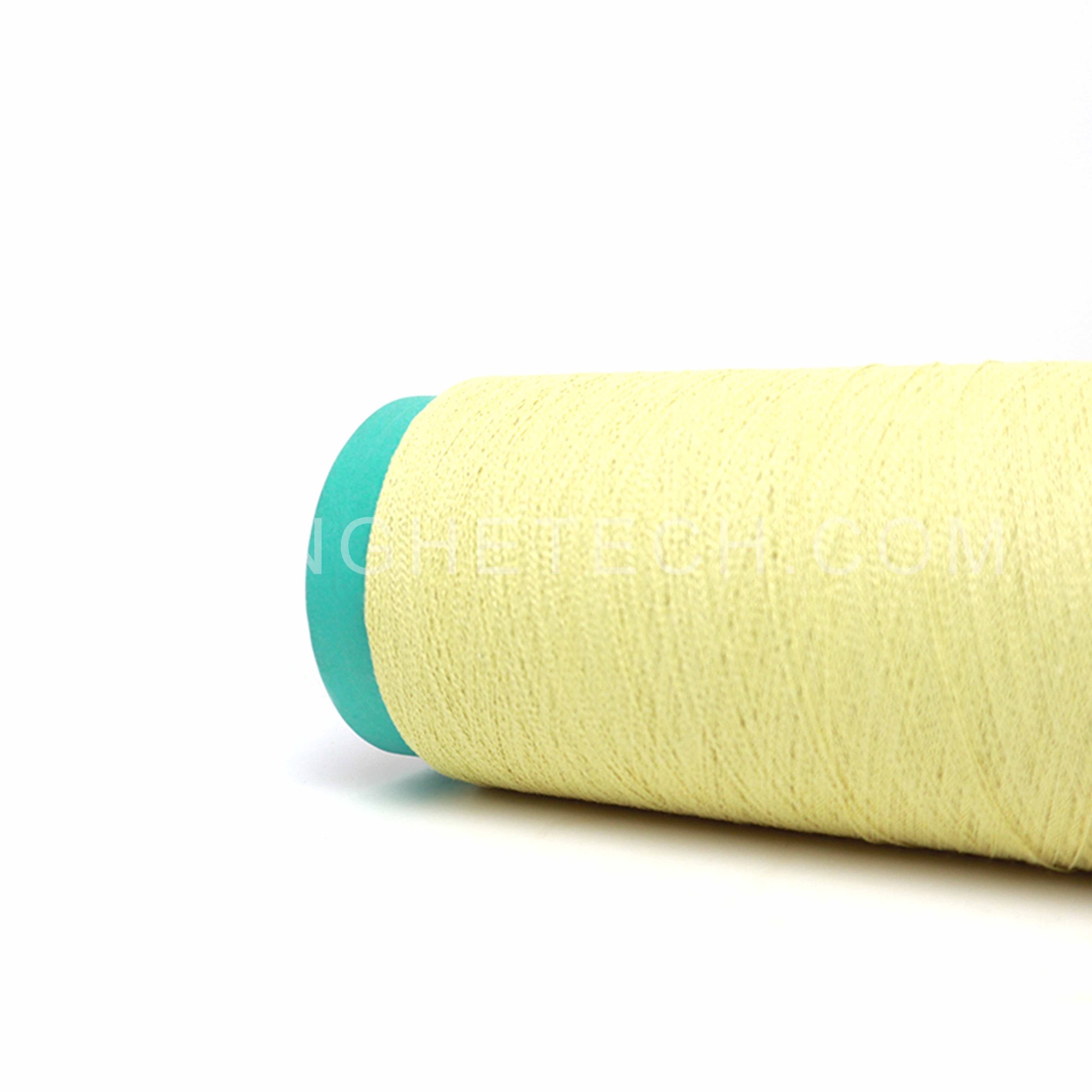

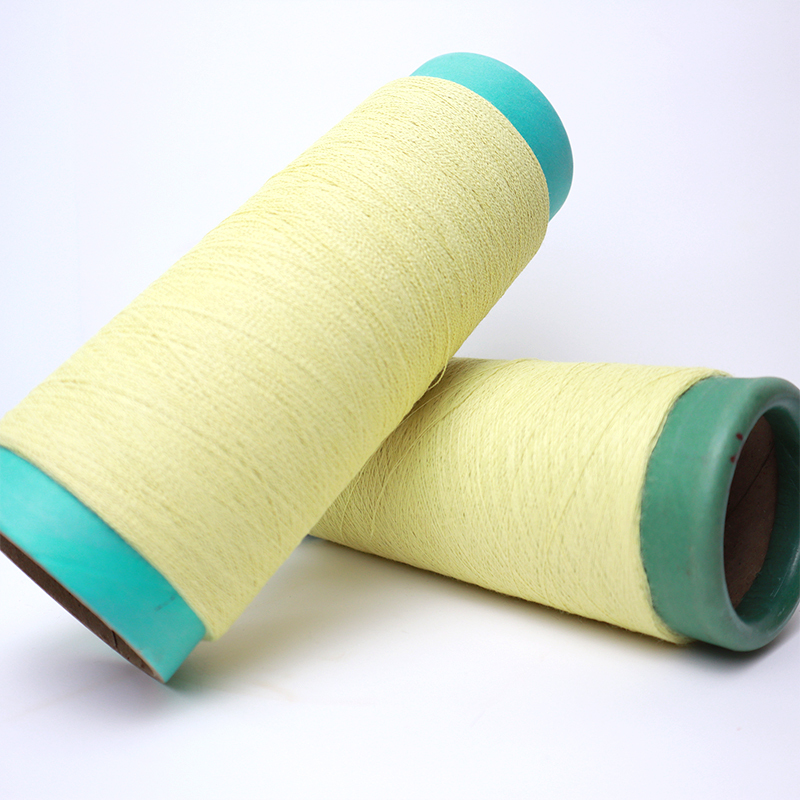

What is FR Para aramid stainless steel core yarn ?
Para-aramid yarn is wrapped with stainless steel wire as the core of the yarn to enhance the strength of the yarn. It is mainly used as a perfect sewing material for aramid detachable thermal covers and other heat-proof and moisture-proof special-shaped wraps. Our Para-aramid stainless steel sewing thread is made of para-aramid staple fiber thread and 316L stainless steel wire. It has the same heat resistance, heat insulation, fire protection and anti-aging properties as fiberglass sewing thread, but has stronger toughness. Good thermal insulation and abrasion resistance make aramid staple stainless steel sewing thread ideal for automotive, industrial and marine applications.
Para-aramid-wrapped stainless steel wire yarn has outstanding properties such as flame retardancy, high temperature resistance, high strength, high modulus, etc. It is a new type of special polymer material.
Properties of FR stainless steel core Para aramid yarn
1.Excellent flame retardant and cutting resistant.
2.High temperature resistant.
3.Resistant to chemicals.
4.Fireproof, high strength, high modulus
5.Good textile properties.
6.No melt drip non-poisonous properties.
7.Resistant to aging and fatigue.
Item |
Length yds / lb |
Weight (kg) |
Diameter (mm) |
Intensity (lbf) |
Recommended operating temperature |
SH-K304-6 |
2250±100 |
1±0.1 |
0.35 |
10 |
Continuous: 204°C(400°F)
Carbonize: 370°C(700°F)
|
SH-K304-8 |
1950±100 |
1±0.1 |
0.40 |
11 |
Application area
Spun para aramid Stainless steel wire yarn is primarily used as a perfect sewing material for detachable thermal covers and others special-shaped wraps where protection against heat and moisture made of aramid spun fiber wrings and 316L stainless steel wire, our aramid spun fiber stainless yarn provides the same heat resistant, insulating, fireproof and anti-aging performance as fiberglass sewing thread with enhanced tenacity. Good thermal insulation and abrasion resistant performance make aramid spun fiber stainless yarn is excellent for automotive, industrial, and marine applications.
Stainless steel wire para aramid yarn has a wide range of uses, mainly used in cables, protective clothing, bulletproof clothing, welding clothing, welding gloves, and as a reinforcing material for wires, cables, earphone wires, etc. It can withstand high temperatures of over 500 degrees celsius. Due to its superior properties such as high strength, high elastic modulus, toughness, thermal stability, and non conductivity, para aramid fabric which made by FR spun para aramid stainless steel wire has been increasingly widely used in civil engineering construction, reinforcement engineering, and other fields.
0.2mm.0.4mm,0.35MM para-aramid steel wire yarn sheathed thread for high temperature resistant compressor turbine detachable value sheath line 200D, 400D, 600D, 800D, 1000D, 1500D, 2000D, 3000D stainless steel wire para-aramid filament yarn used in film and television wire slings and marine industrial ropes para aramid-coated steel wire sewing thread is used in high-temperature protection products such as car seat cushions, engine heat shields, high-temperature insulation sheaths, high-temperature pipe sheaths, high-temperature car muffler shields, etc.
Para aramid fabric which made by FR para aramid stainless steel wire also used in below fields: fire resistance weaving, high voltage live shielding weaving ,high strength cloth ,heat resistance fields.
