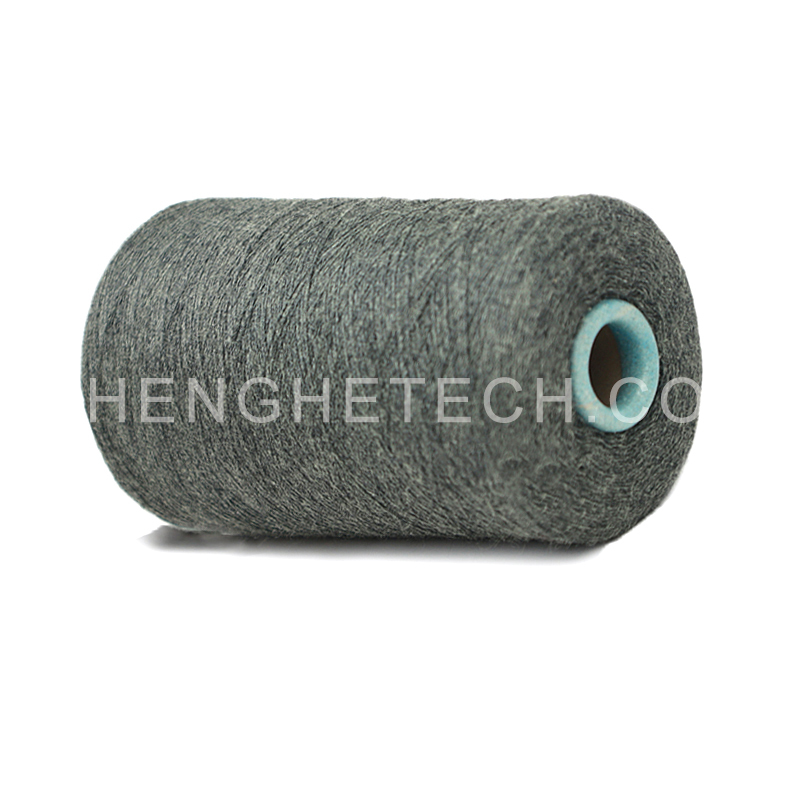

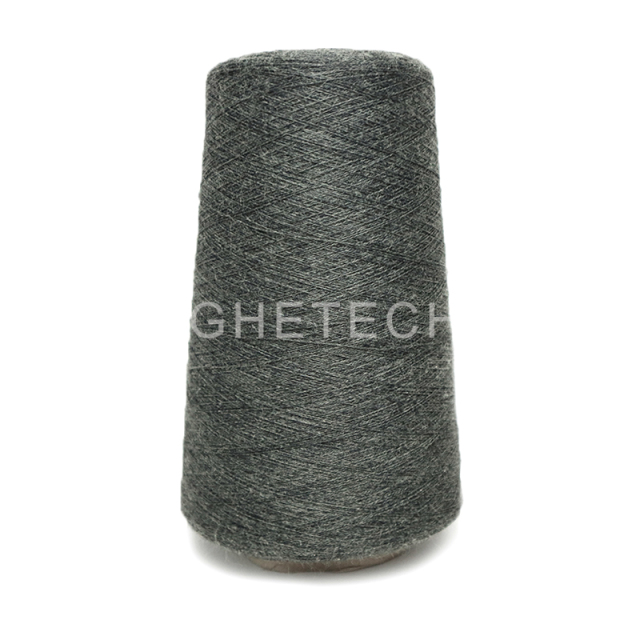

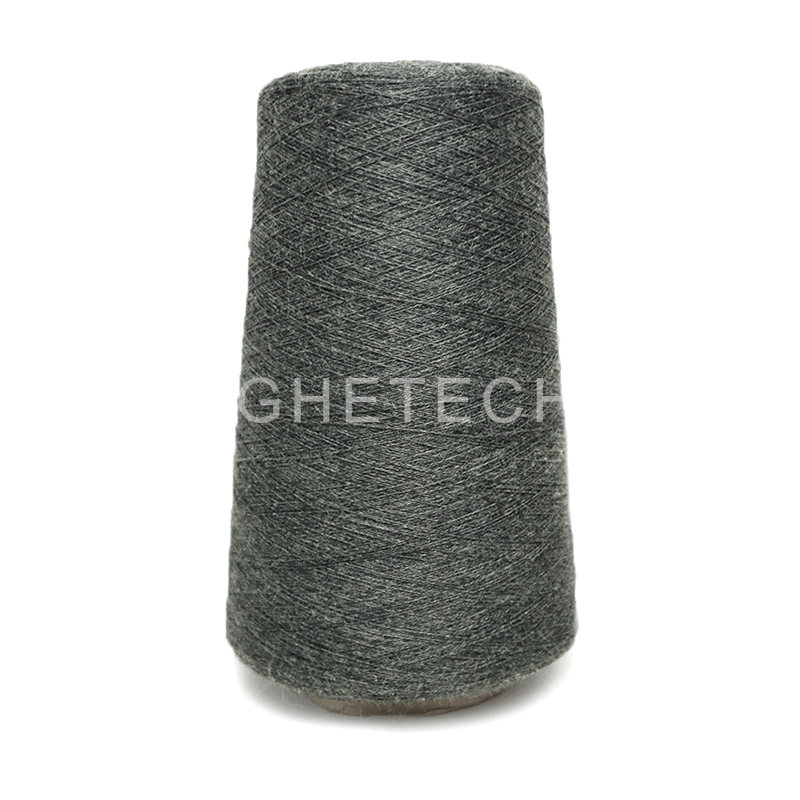

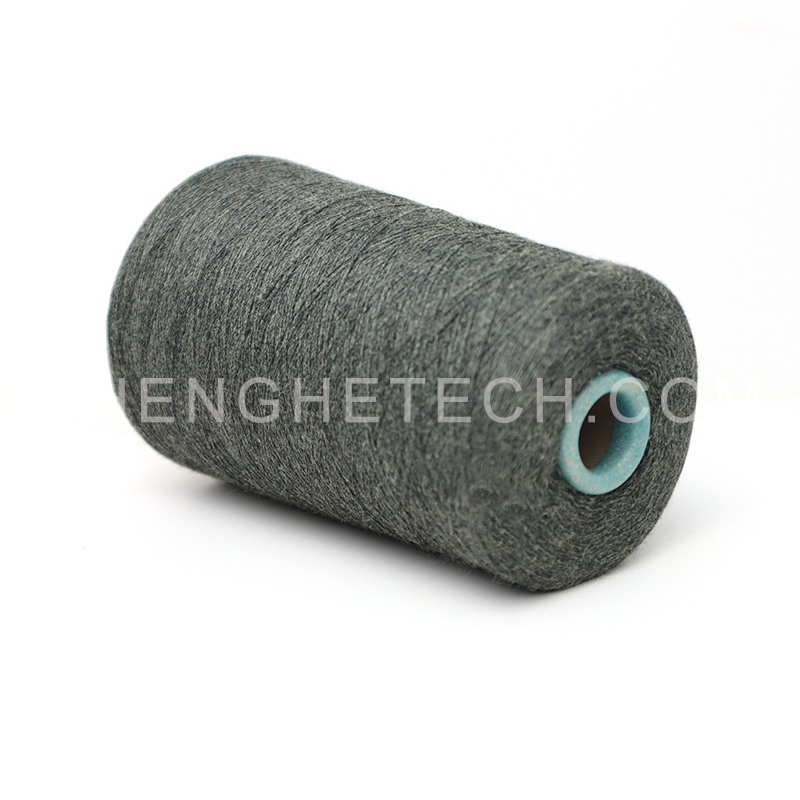

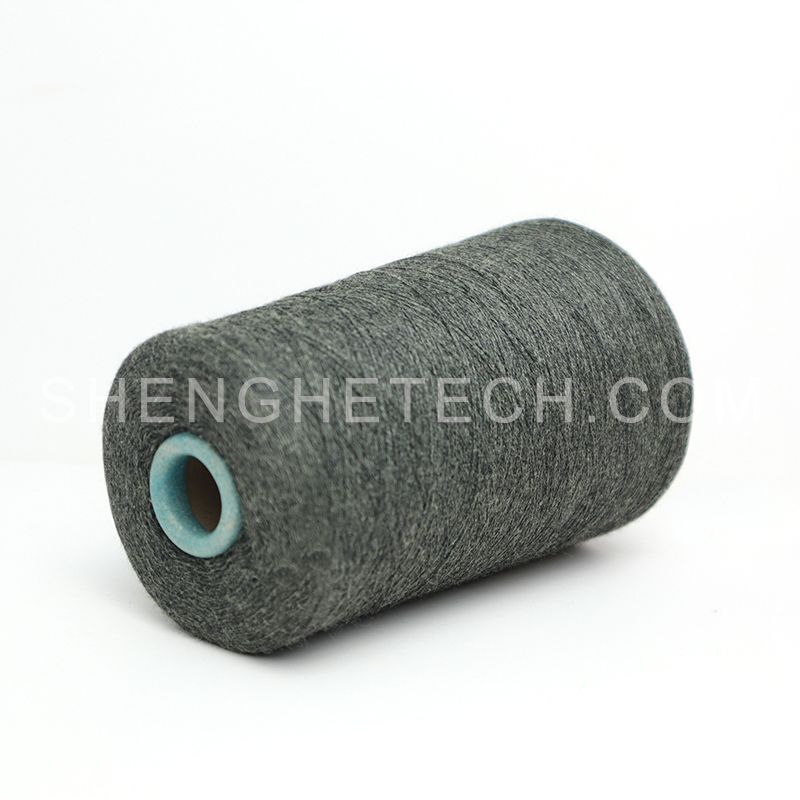

What is pre-oxidized pan ( panox ,ox , preox ) and para-aramid ( 1414, taparan, kevlar, twaron ) blended yarn?
Pre-oxidized yarn and para-aramid blended yarn is made of pre-oxidized polyacrylonitrile and para-aramid as raw materials through ring spinning. Polyacrylonitrile pre-oxidized fiber is referred to as pre-oxidized fiber or Panox or OX or Preox, which is made of polyacrylonitrile fiber as raw material through high-temperature thermal stabilization treatment. The pre-oxidized fiber has high flame retardancy. The limiting oxygen index is greater than 40%. It has excellent thermal stability, the fiber does not melt, does not soften and shrink, and has no dissolved droplets during combustion. It is a quasi-non-combustible product.
The full name of para-aramid fiber is "poly-paraphenylene terephthalamide" (PPTA) fiber, which is an organic compound synthesized from terephthaloyl chloride and p-phenylenediamine. Machine polymer fiber, because the amide bond is connected at the No. 1 and No. 4 positions of the two benzene rings, it is also called aramid fiber 1414, Taparan, Kevlar, Twaron, with high specific strength and high specific modulus Excellent properties such as weight, high temperature resistance and flame retardancy, and carbon fiber, high-strength and high-modulus polyethylene are known as the world's three high-performance fiber, the main outstanding advantages of para-aramid fiber are high strength and high modulus, its tensile strength is 6 times that of steel wire, tensile modulus is 2~3 times that of steel wire and glass fiber, high temperature resistance, at 560 ℃ No decomposition, no melting, acid and alkali resistance, density (1.44g/cm2) density is only one-fifth of steel wire. It has good flame retardancy and the limiting oxygen index is above 29.
The spinning process of pre-oxidized pan and para-aramid blended yarn is divided into: cleaning room--carding--pre-drawing--strip and coil--combing--first drawing--secondary drawing - Roving - spun yarn - winding.
Pre-oxidized Pan and para-aramid blended yarn has very good textile properties, the fabric made of pre-oxidized Pan and para-aramid blended yarn has the advantages of light, soft, good strength, good heat insulation effect, corrosion resistance, chemical environment resistance, and radiation resistance. The flame retardant, high temperature and heat insulation pre-oxidized pan fiber and para-aramid blended yarn developed and produced by Shanghai Shenghe Textile Technology Co., Ltd. is a new type of heat insulation material, with good flexibility, low thermal conductivity, corrosion resistance, high-temperature resistance, non-flammability, and other characteristics, it is widely used in firefighting (cloth for firefighting combat/cloth for fire-fighting clothing/cloth for fire-fighting gloves), military (cloth for tactical gloves/cloth for special police gloves/cloth for air force gloves), aviation (aircraft seat fire barrier fabric / aircraft seat cover cloth / aviation blanket), petrochemical industry (fire insulation blanket for electric welding construction/reinforcing material for oil exploration cables), iron and steel smelting (furnace fitter clothing, cloth for gloves), Shipbuilding (fire blanket for electric welding construction) and other industries.

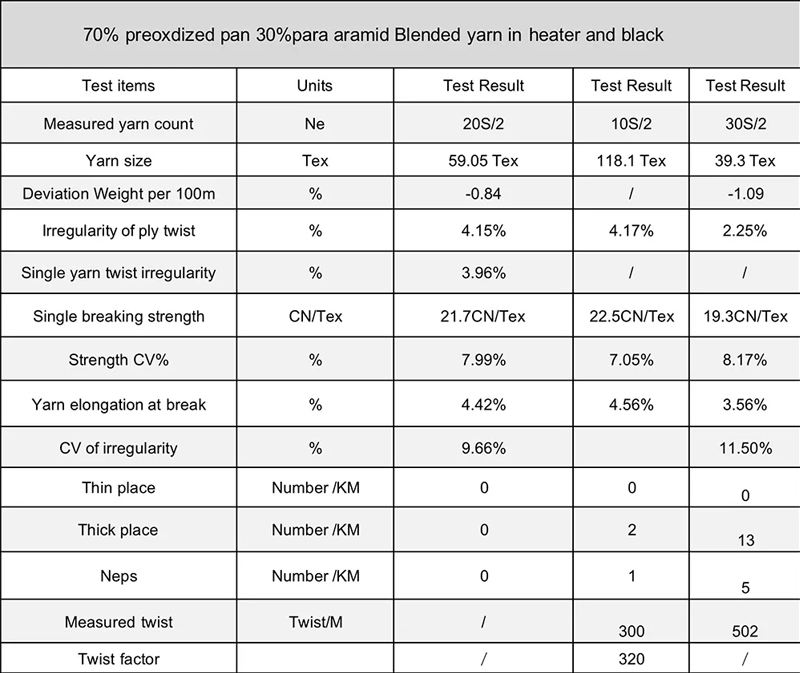

Pre-oxidized pan and para-aramid blended yarn technical data sheet
Panox and kevlar blended yarn performance characteristics
- Pre-oxidized fiber and para-aramid blended yarn, the color is evenly mixed, the yarn count is uniform, and the yarn strength is very good.
- Pre-oxidized fiber and para-aramid blended yarn is non-flammable, non-melting, non-heat-shrinkable, non-thermally cracked, and has no droplet. The heat-resistant and flame-retardant effect of pre-oxidized Pan and para aramid blended yarn better than pure para-aramid yarn. The fabric made of pre-oxidized pan and para-aramid blended yarn has excellent performance of flame retardant, wear-resistant, acid and alkali resistance, and corrosion resistance.
- Heat insulation and high temperature resistance: excellent heat resistance performance, can be used for a long time at a relatively high temperature (≤350°C), is difficult to burn under an open flame, and will extinguish without flame.
- Corrosion resistance: good chemical properties, resistant to various acid and alkali solvents, good corrosion resitance, chemical environment resistance, radiation resistance and can be used in harsh corrosive media.
- Flame retardant and heat insulation: excellent heat insulation performance, low thermal conductivity, good heat insulation effect. it has high flame retardancy, oxygen index ≥ 40%.
- Excellent thermal stability: no softening and shrinkage, no melting drops, it is a quasi-non-combustible product.
Panox and kevlar blended yarn application
Pre-oxidized Pan yarn and para aramid fiber blended yarn can be knitted into flame-retardant and high-temperature resistant gloves. Fabrics made of pre-oxidized pan and para aramid blended yarns can be used for special flame-retardant clothing, thermal protective clothing, spark protection welding blanket, firefighting clothing, steelmaking clothing, high-temperature work clothing fabrics, bags and other outdoor products, and can also be used for industrial fabrics, Flame-retardant aviation products, high-speed train products, tunnel fire prevention, automobile hood insulation, fuel tank insulation, high-speed train products, camping tents and other heat-insulation and flame-retardant industries. The heat-resistant and fire-resistant performance is stable and can be customized for production.
Pre-oxidized fiber (Panox, ox, preox) and para-aramid blended yarn can be knitted and weaved and are used in high performance FR apparel, woven welding blankets, industrial fire-blocking layers, mechanical seals and gaskets, high temperature belting.
- Protective clothing: Such as high-temperature work clothes, fire-fighting clothes, combat clothes, welding clothes, fire-resistant gloves, fire-resistant webbing.
- Flame retardant decoration materials: Such as flame-retardant and heat-resistant curtains, seat covers of automobiles, motor vehicles, aircraft and other flame-retardant and heat-resistant decorative products. kitch fire extinguishing covers, winery covers.
- High temperature resistant material: Such as high-temperature gas / solid materials, flame-retardant and sound insulation of automobiles and buildings, and heat insulation in high-temperature environments, industrial fire-blocking cover to protect equipments in high temperature environment.
- Heat insulation materials: fireproof, anti-welding spark materials, fire escape blankets, car seat inner cladding, sound insulation, interior decoration, etc.
