What is carbon fiber biaxial-triaxial fabric ?
The most commonly used carbon fiber axial cloths are carbon fiber biaxial cloth and carbon fiber triaxial cloth. The following is a structural diagram of carbon fiber biaxial cloth.
Carbon fiber biaxial non-crimp fabric (NCF) consists of parallel fiber layers laid in two directions and stitched with texturized polyester yarns. The most commonly used carbon fiber biaxial non-crimp fabrics (NCF) are oriented at ±45° or 0°/
90°. Also available on request ±30° or ±60°. Longitude at 0° is always the length direction of the roll and the stitching direction. For special requirements, directions can also be combined (i.e. +45°90° or 0°-45° etc.), carbon fiber biaxial non-crimp fabric (NCF) is available in standard widths from 1270mm to 2540mm, or can be cut into ribbons without the fibers unraveling. Currently, many years The expertise developed here already enables the production of wrinkle-free fabrics in a wide range of weights from 50 g/m² to 1200 g/m².

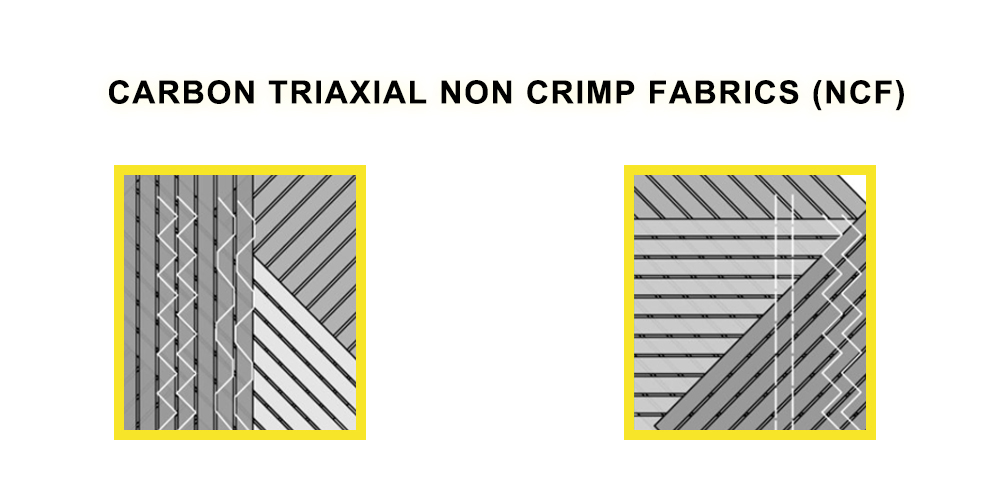

The following is a structural diagram of carbon fiber triaxial cloth
Carbon fiber triaxial non-crimp fabric (NCF) consists of parallel fiber layers laid in 3 directions and stitched with texturized polyester yarns. The most commonly used triaxial non-crimp fabrics (NCF) are oriented at 0°±45° or +45°90°-45°, 0° and 90° layers can be placed on the outer surface, or between ±45° layers. Also available on request ±30° or ±60°. The longitudinal direction of 0° is always the length direction of the roll and the seam direction. Triaxial non-crimp fabric (NCF) is available in standard widths from 1270mm to 2540mm or can be cut into strips without the fibers unraveling. Currently, professional skills developed over many years, the technology has allowed the production of a variety of triaxial non-crimp fabrics (NCF) ranging from 225 g/m² to 900 g/m².
Carbon fiber axial cloth is woven from 12K, 24K carbon fiber. Carbon fiber models include T300, T700, T800, M30, M35, M40, T1000, high strength, high strength medium mold, high strength high mold, the carbon fiber filaments we use include many well-known domestic brands and well-known imported brands, such as: Toray and TEIJIN, Mitsubishi Chemical, Hexcel, Zoltek, HYOSUNG, AKSACA, CYTEC SOLVAY GROUP, SGL .
Carbon fiber axial fabric's applications mainly include aerospace, automotive parts, sports equipment, building reinforcements.
Characteristics of carbon fiber axial fabric
- Abrasion-resistant, breathable, chemical-resistant, heat-insulation, moisture-absorbent, radiation-resistant, stain resistant, wrinkle resistant ,light weight, flexible and easy to operate, smooth surface and uniform force distribution, corrosion resistance, wear resistance and impact resistanc.
- High-performance carbon axial fabric has excellent properties such as light weight, high strength, high modulus, conductivity, high temperature resistance, fatigue resistance, erosion resistance, low expansion coefficient, good design ability and compound ability.
- High strength (5 times that of steel).
- Excellent heat resistance (can withstand high temperatures above 2000°C).
- Excellent thermal shock resistance.
- Low thermal expansion coefficient (small deformation).
- Small heat capacity (energy saving).
- Small specific gravity (1/5 of steel).
Applications of carbon fiber axial cloth
Carbon fiber axial cloth is a material made of carbon fiber yarns or fiber bundles arranged along the axial direction. Such fabrics are commonly used to enhance the properties of composite materials, particularly in aerospace, automotive, sporting goods and other fields. Here are some applications of carbon fiber axial cloth:
Aerospace field: carbon fiber axial cloth is often used in structural components of aircraft and spacecraft, such as wings, rudder surfaces, fuselages, etc. Its lightweight and high strength benefit aircraft in terms of both performance and fuel efficiency.
Automotive Industry: in automobile manufacturing, carbon fiber axial cloth is often used in body structures and components to reduce overall weight and improve vehicle fuel efficiency. At the same time, it can also enhance the rigidity and durability of the car.
Sports equipment: carbon fiber axial cloth is widely used in the sporting goods industry for skis, surfboards, kite boards, helmets, bicycle frames, golf clubs, tennis rackets, golf clubs, and snowboards, and many other sports goods. Shenghe's carbon fiber multi-axial cloth products It can fully meet the requirements of competitive sports.As use carbon fiber axial cloth to enhance their performance and reduce the burden on athletes when using them.
Shipbuilding: carbon fiber axial fabric is used in the construction of almost all structural components of ships: hull (bottom and sides), decks, superstructures, internal bulkheads, general reinforcements. As the most technologically advanced carbon fiber axial fabrics with mechanical properties superior to traditional fabrics, they are most naturally used in rowing, the main advantages of engines for yachts, sailing boats and cargo transport are lightness and strength thus reducing fuel consumption.
Sports equipment: some sports equipment, such as engineering construction: in some special engineering construction projects, carbon fiber axial cloth is also used to reinforce concrete structures and improve their tensile strength and durability. In general, carbon fiber axial cloth has a wide range of applications, mainly in areas that require lightweight, high strength and durability. The properties of this material make it ideal for use in many industrial sectors and products.
