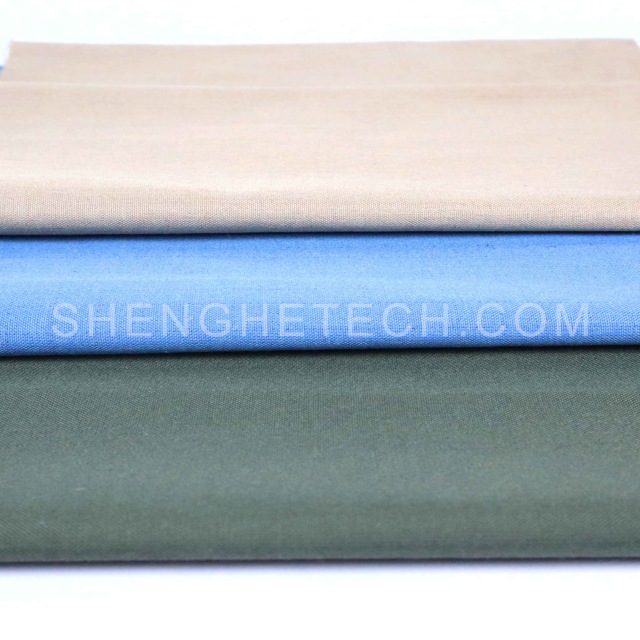

What is 93% meta-aramid 5% para-aramid 2% anti-static fabric (IIIA aramid fabric)?
93% meta-aramid fiber 5% para-aramid fiber 2% anti-static fiber blended fabric (aramid IIIA fabric), Which weaved by the yarn in main raw material of meta-aramid fiber Mixed with para-aramid fiber and anti-static fiber through ring spinning.
Meta-aramid fiber is a kind of aromatic polyamide fiber (aramid fibers), full name Poly-m-phenylene isophthalamide fiber, the English name meta-aramid is referred to as PMIA, we also call aramid 1313 Nomex Conex Tameter , the main raw materials of meta-aramid are isophthaloyl chloride (IPC) and m-phenylenediamine (MPD).
The full name of para-aramid fiber is "poly-paraphenylene terephthalamide" (PPTA) fiber, which is made of The organic polymer fiber synthesized by terephthaloyl chloride and p-phenylenediamine is also called aramid 1414, Taparan, Kevlar, Twaron has excellent properties such as high specific strength, high specific modulus, high temperature resistance and flame retardancy. It is compatible with carbon fiber, High-strength and high-modulus polyethylene is also known as the world's three major high-performance fibers. The main outstanding advantages of para-aramid are high strength and high modulus. Its tensile strength is 6 times that of steel wire, and its tensile modulus is 2 times that of steel wire and glass fiber. ~3 times, high temperature resistance, at 560 ° C, no decomposition, no melting, acid and alkali resistance. density (1.44g/cm2) The density is only one-fifth of steel wire, it has good flame retardancy, and the limiting oxygen index is above 29.
Antistatic fiber is a synthetic fiber with slight conductive function, which is made of conductive material and polyester fiber.The commonly used antistatic fiber is Bekinox.
92% meta-aramid and 5% para-aramid,The weaving process of 2% anti-static fiber blended fabric (aramid IIIA fabric) mainly includes:
winding, warping, sizing, drawing in, weaving, finishing, 93% meta-aramid 5% para-aramid 2% Antistatic fiber blended fabric (aramid IIIA fabric ) has suitable Excellent textile processing performance, 93% meta-aramid 5% para-aramid 2% anti-static fiber blended fabric (aramid IIIA fabric), has excellent inherent fire resistance, good thermal stability, high strength, light fabric, Soft, good strength, good heat insulation effect, corrosion resistance, chemical environment resistance, good radiation resistance, Long service life and other advantages, mainly used in fire rescue suits, flight suits, police uniforms, etc. The flame-retardant, high-temperature-resistant and heat-insulating 93% meta-aramid 5% para-aramid 2% anti-static fiber blend fabric (aramid IIIA fabric) produced by Shanghai Shenghe Textile Technology Co., Ltd. is a heat-insulating fabric with flexibility good guide Low thermal coefficient, corrosion resistance, high temperature resistance, non-flammability and other characteristics are widely used in firefighting (cloth for firefighting combat clothing / cloth for fire-fighting clothing/cloth for fire-fighting gloves), military (cloth for tactical gloves/cloth for special police gloves/cloth for air force Cloth for gloves), aviation (aircraft seat fire barrier fabric / aircraft seat cover cloth/ Aviation blanket), petrochemical industry (fire blanket for electric welding construction/reinforcing material for oil exploration cables), iron and steel smelting (furnace fitter clothing, cloth for gloves), shipyard (fire blanket for electric welding construction) and other industries.

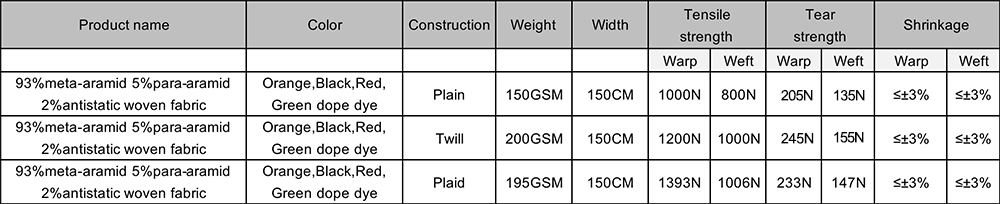

IIIA aramid fabric technical date sheet
IIIA aramid fabric performance characteristics
- 93% meta-aramid 5% para-aramid 2% anti-static fiber blended fabric (aramid IIIA fabric), bright colors, rich colors, light and soft fabric.
- 93% meta-aramid 5% para-aramid 2% anti-static fiber blended fabric (aramid IIIA fabric), non-flammable, non-melting, non-heat shrinkable, no thermal cracking, no melt drop, aramid IIIA fabric, excellent performance in anti-static, flame retardant, wear resistance, acid and alkali resistance, corrosion resistance, etc.

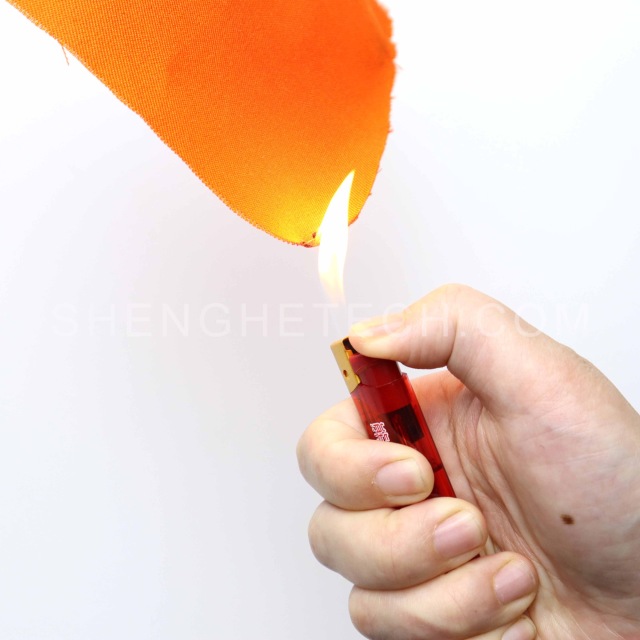

- Heat insulation and temperature resistance: excellent heat resistance and heat resistance performance, can be used for a long time at a relatively high temperature (≤260°C), is difficult to burn under an open flame, and will extinguish without flame.
- Corrosion resistance: good chemical properties, resistant to various acid and alkali solvents, and can be used in harsh corrosive media.
- Flame retardant and heat insulation: excellent heat insulation performance, low thermal conductivity, good heat insulation effect; it has high flame retardancy, oxygen index ≥ 28%.
- Excellent thermal stability: no softening and shrinkage, no melting drops, it is a quasi-non-combustible product, chemical environment resistance, and radiation resistance.
- Long service life.
IIIA aramid fabric application
93% meta-aramid 5% para-aramid 2% anti-static fiber blended yarn (aramid IIIA yarn) can be knitted into flame-retardant and high-temperature resistant gloves. Fabric of 93% meta-aramid 5% para-aramid 2% anti-static fiber can be used for special flame-retardant clothing, thermal protective clothing, spark protection welding blanket, firefighting clothing, steelmaking clothing, high-temperature work clothing fabrics, bags and other outdoor products, and can also be used for industrial fabrics, Flame-retardant aviation products, high-speed train products, tunnel fire prevention, automobile hood insulation, fuel tank insulation, high-speed train products, camping tents and other heat-insulation and flame-retardant industries. The heat-resistant and fire-resistant performance is stable and can be customized for production.
93% meta-aramid 5% para-aramid 2% anti-static fiber blended fabric (aramid IIIA fabirc ) can be used in high performance FR apparel, woven welding blankets, industrial fire-blocking layers, mechanical seals and gaskets, high temperature belting and can also be carbonized for use in carbon fiber composite end uses.
- Protective clothing: Such as high-temperature work clothes, fire-fighting clothes, combat clothes, welding clothes, fire-resistant gloves, fire-resistant webbing
- Flame retardant decoration materials: Such as flame-retardant and heat-resistant curtains, seat covers of automobiles, motor vehicles, aircraft and other flame-retardant and heat-resistant decorative products.
- High temperatrue reslstant fabric: Such as high-temperature gas / solid materials, flame-retardant and sound insulation of automobiles and buildings, and heat insulation in high-temperature environments.
- Heat insulation fabric, fireproof, anti-welding spark materials, fire escape blankets, car seat inner cladding, sound insulation, interior decoration, etc.

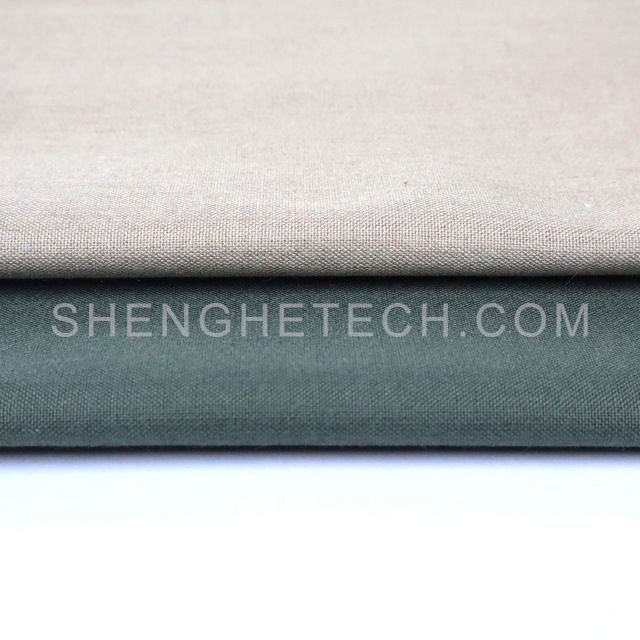

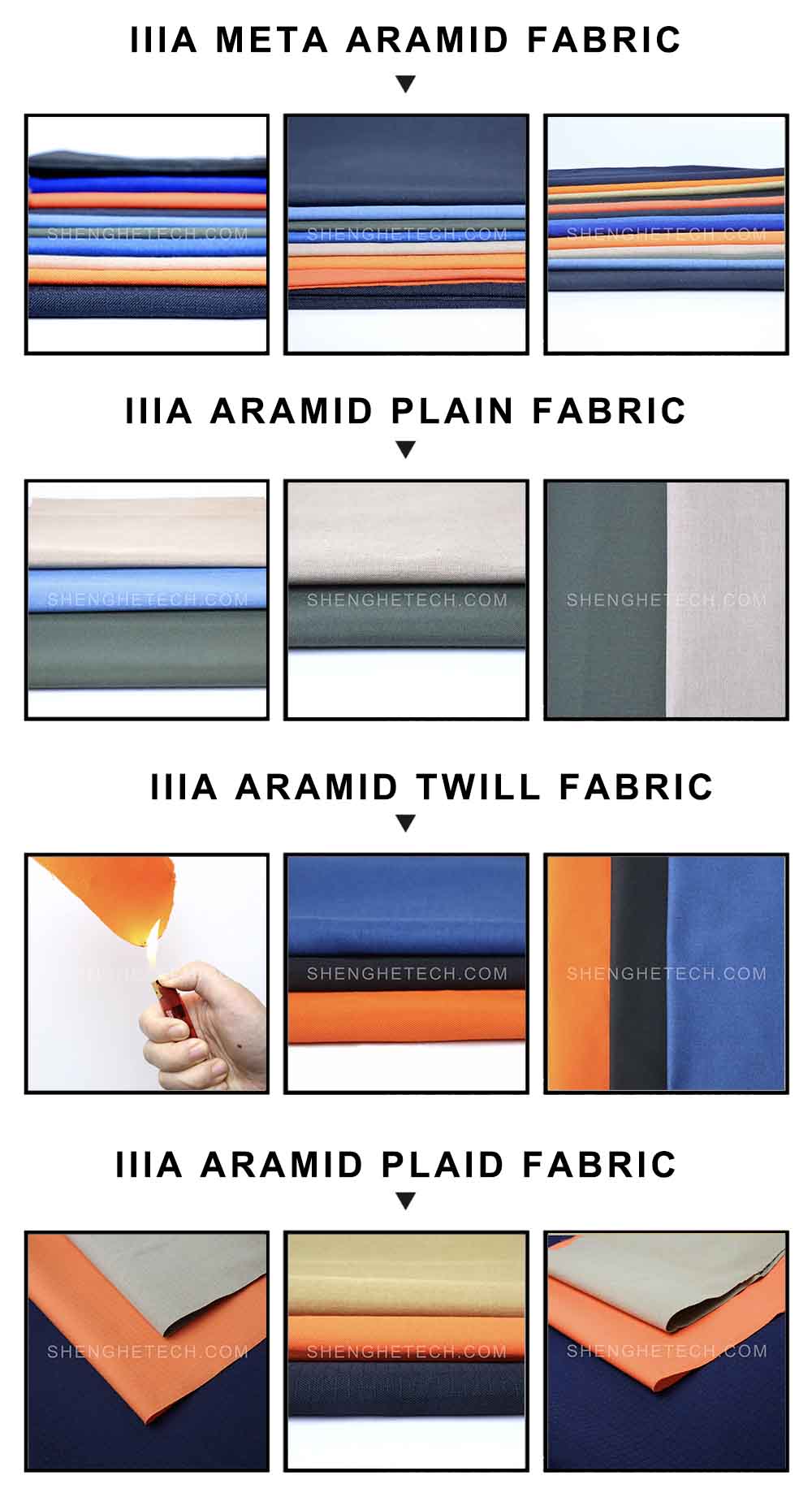

IIIA aramid fabric
